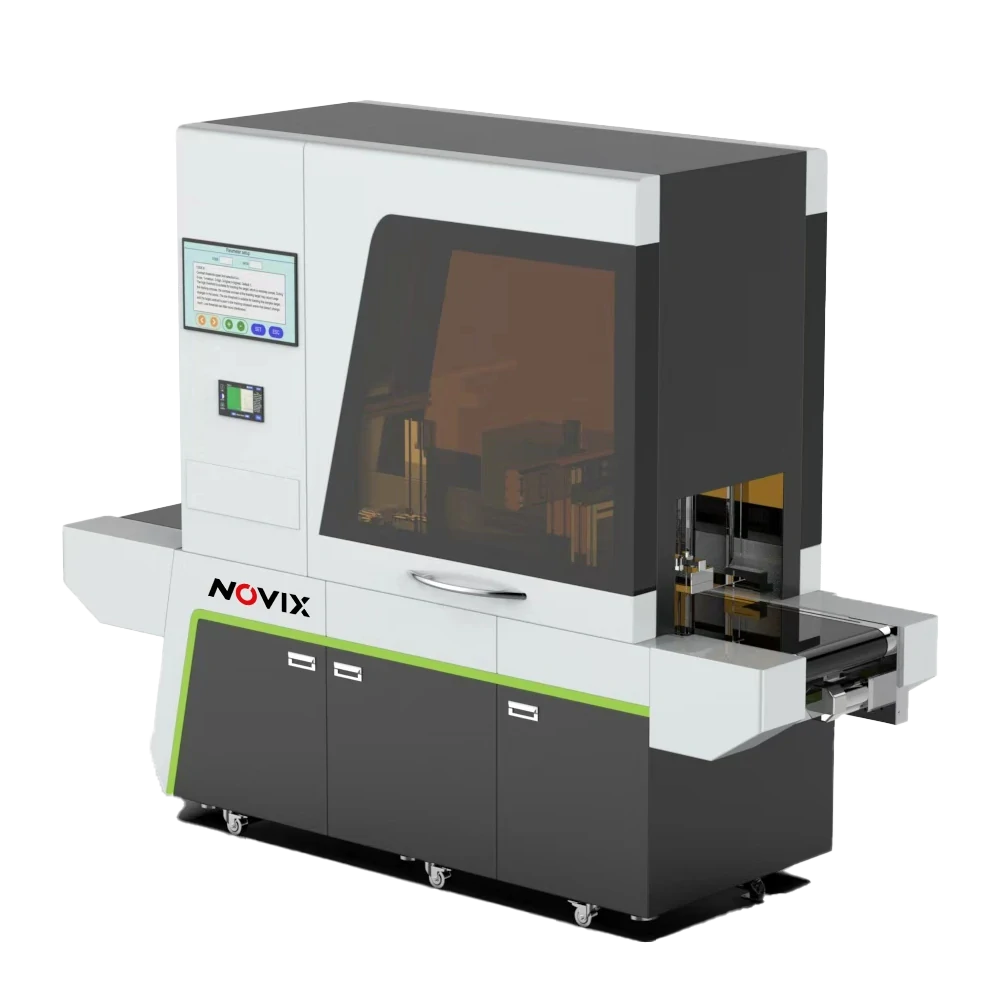

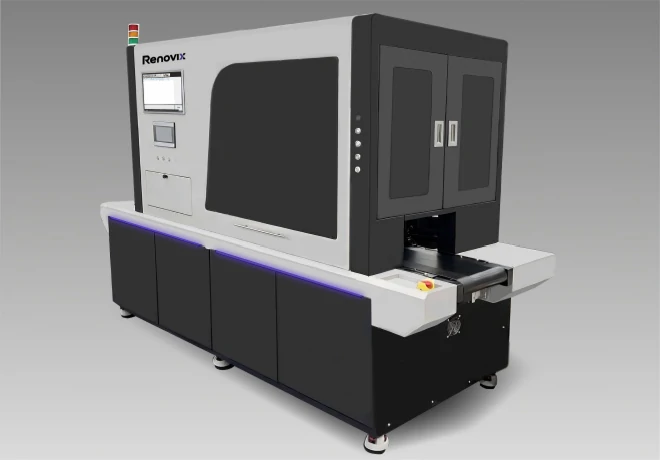

ZH Industrial Multifunctional Digital Printer
Industrial level, all flat printing surfaces of different materials
Industrial level, all flat printing surfaces of different materials
UV single-print printing: the ultimate mass production solution. Flexible for various materials, enabling high-speed, cost-effective, and high-volume digital printing with just one print job.
* Auto feeder customized available for different products, save labour cost.
* Auto plasma treatment removes dust and improves product color fastness
* Novix software with color management (With ink consumption/ cost auto calculation)
* Over 200 kinds of ink formula tested for better printing quality and color reproduction on different material.
* Support variable data software, with various of international variable QR code, Barcode, Pics, Code128、European Article Number etc.
* I/O Interface, robot arm controlling connection support
* Continual ink supply system (CISS); Intelligent constant sub-ink tank pressure; ink circulation system according to printhead, to make maintenance easier without doing labour-cleaning all the time
* Auto ink shortage alarm system, no worries of ink shortage and harm printhead; support ink refilled during printing, more user-friendly
Automatic white ink stirring system, no worries of ink sediment and clog issue
* Auto cleaning, auto timing flashing and maintenence

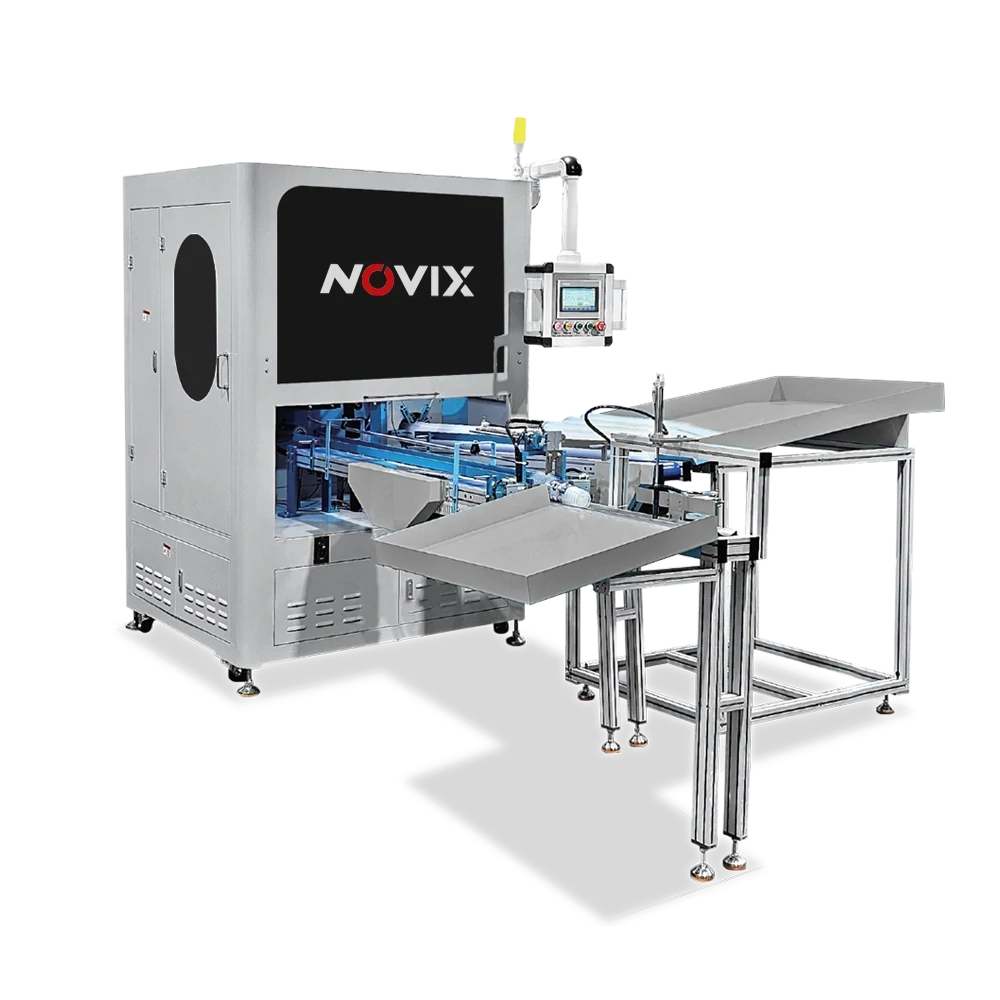

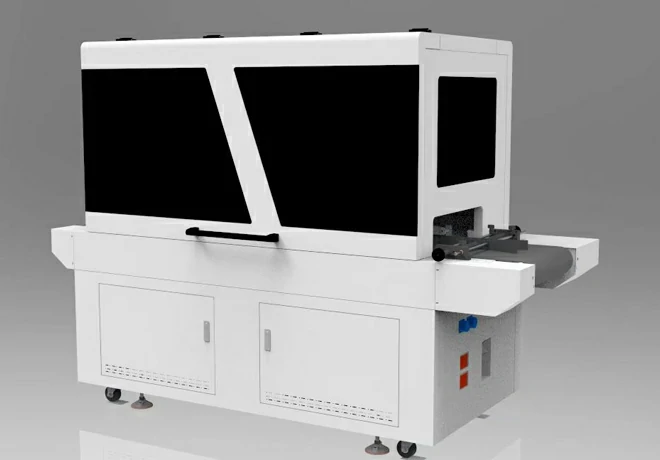

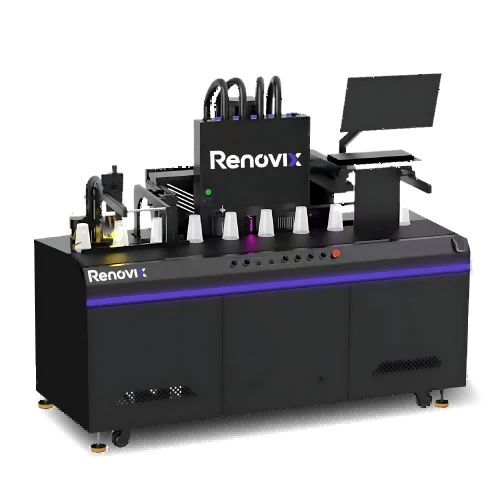

Novix UV Single Pass printers unlock packaging solutions for various industries: from printing on plastic products to printing on auto parts and gifts, UV single-pass digital printers can provide a complete automated CMYK+W printing solution.

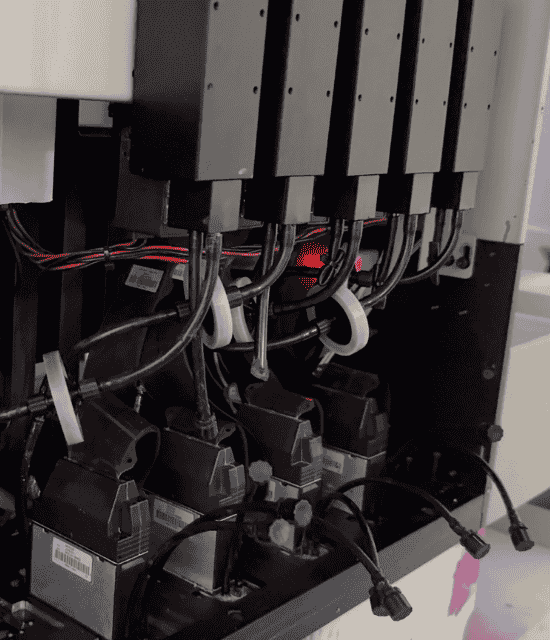

In the field of industrial-grade single-pass digital printing, the printhead is not only a core component but also the soul that determines production efficiency and output quality.
We perfectly combine high-performance industrial printheads with our UV single-pass printers to bring you the ultimate printing experience.
Whether it’s license plate frame printing, stationery paper printing, plastic bag packaging printing, non-woven bag printing, pouch printing, disposable packaging printing, or even coded printing, it can provide a fully automated printing solution integrating feeding and printing.

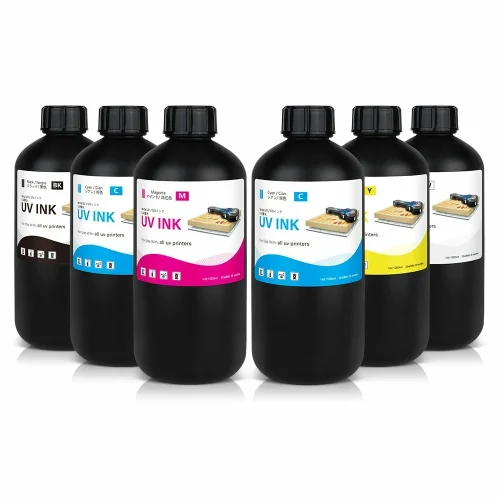

Oil-based Single Pass UV ink with its non-VOC formula, significantly reduces its environmental impact, meeting increasingly stringent international environmental standards. green, safe, and harmless, protecting your health.
Every user’s product size, height, and printing needs are different. Novix has a professional technical team and engineers who can tailor a complete, intelligent, and automated printing solution to your specific needs.
Contact the Novix team now!
Dedicated research and development and excellent manufacturing quality give you a unique and reliable digital printer, empowering your brand/products.

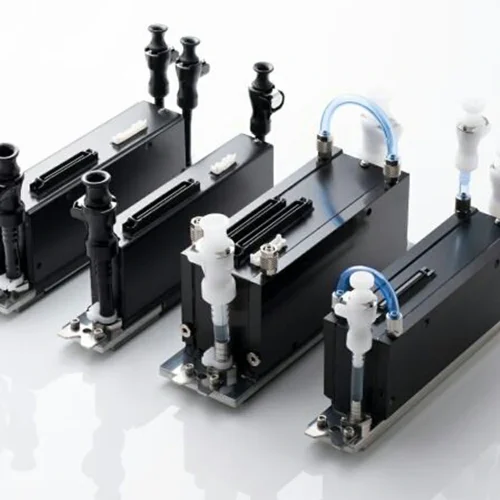

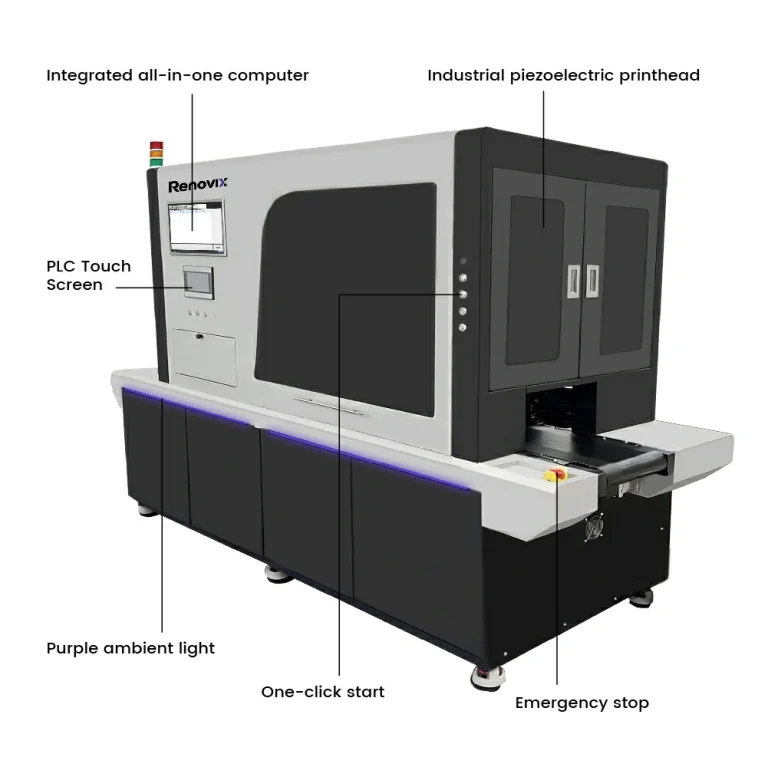

Industrial piezoelectric printhead has an integrated heater and thermistor, keep the ink supply inside the printhead at a constant temperature, ensuring the printing effect, preventing clogging, and easy maintenance.

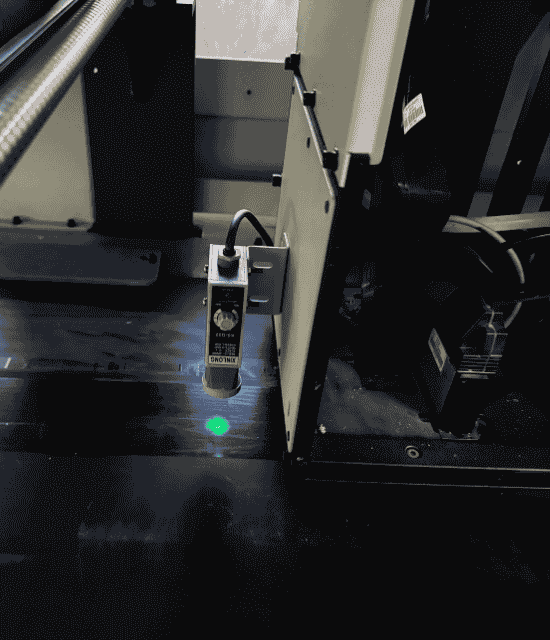

Automatically sense product identification and printing, accurate printing without misalignment.

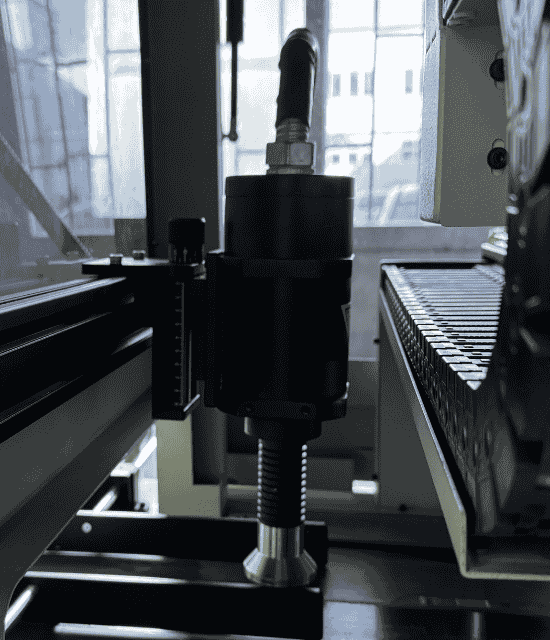

The print head automatically returns to the printing height of last printing jobs.

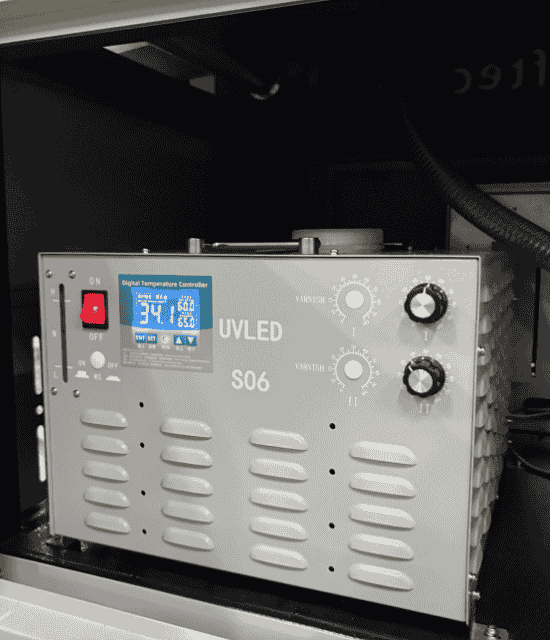

Always control the temperature of the print head and UV lamp to prevent overheating and damage to the print head and UV lamp, making printing smoother.
Support variable code installation Variable data editing software available.

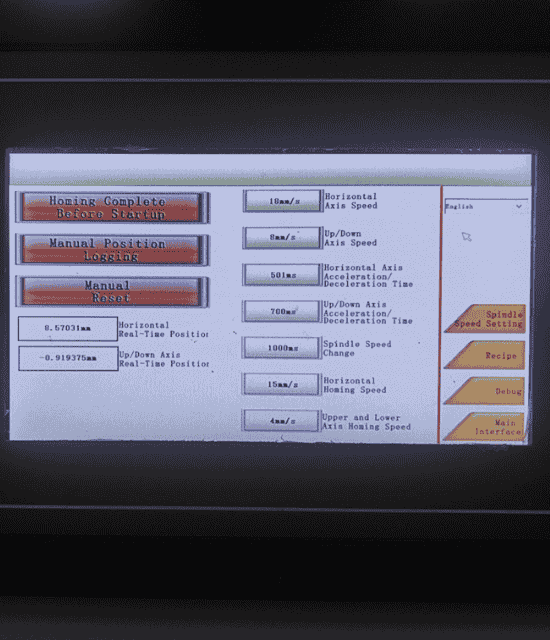

PLC touch screen control panel for user-friendly operation.

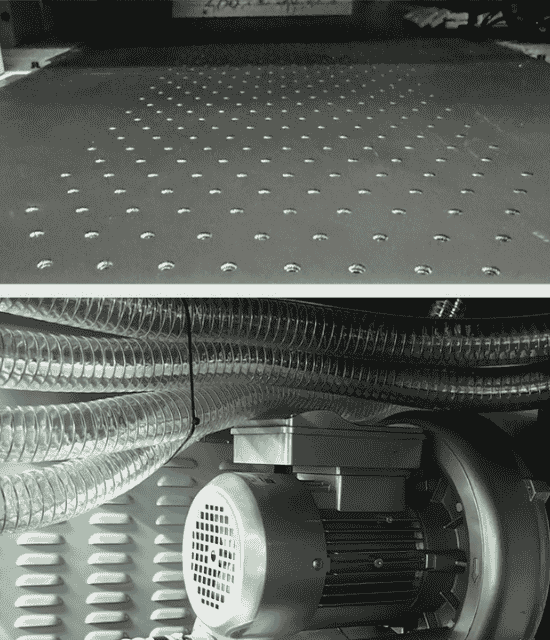

High-power independent motor for suction platform, better adsorb soft products well on the flatbed, not easy to damage the print head.

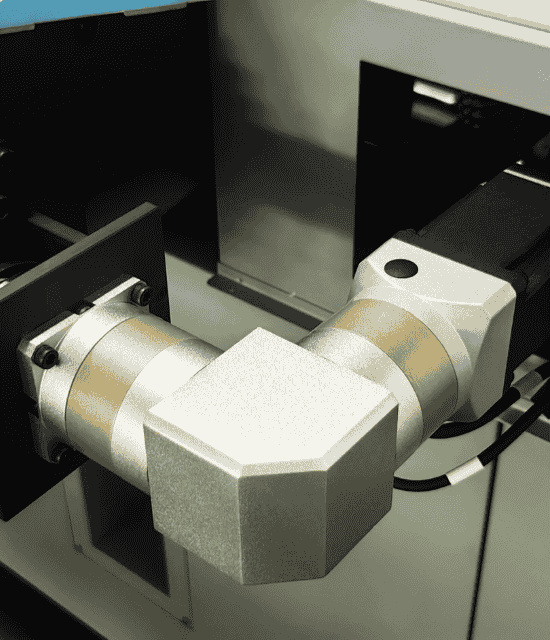

Control the large diameter belt drive of the Y axis, printing is more stable and printing is more precise.
Supports the installation of plasma to remove static electricity and dust, avoid dust clogging, and enhance color fastness.

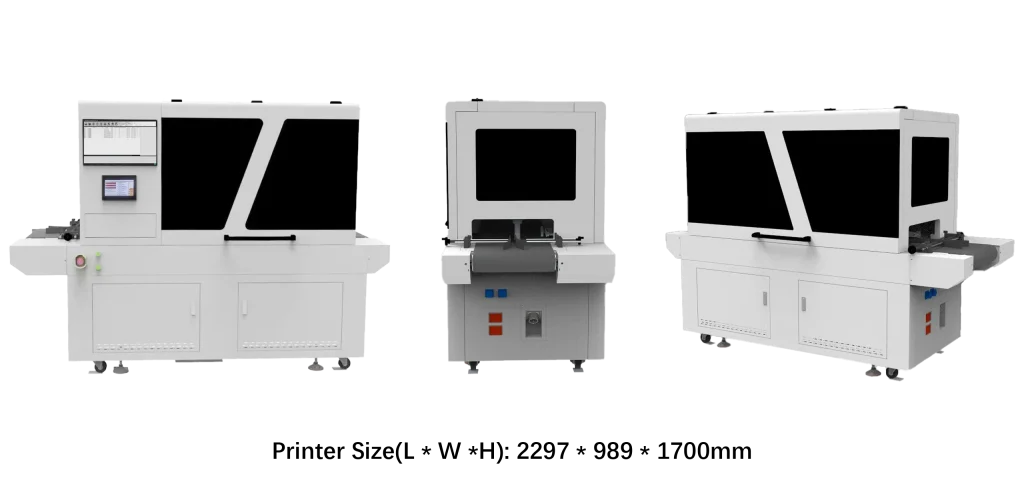

Good products are revealed in the details.
| Print head | Industrial piezoelectric printhead |
| Technology | MEMS |
| Printhead life | Piezoelectric Drive durability, more than 106 billion inkjet times |
| Ink drop Volume | Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink |
| Horizontal Resolution | 600dpi |
| Vertical Resolution | 200~1200dpi multiple adjustable |
| Number of nozzles | 1,280 (4 × 320 channels), staggered |
| Temperature control | Integrated heater and thermistor |
| Jetting frequency | Binary mode : 30kHz / Grey-scale mode : 20kHz |
| Printhead Protection Technology | Auto carriage/printhead anti-scratch kit |
| Maximum printing thickness | 0-150mm (Printing height customization available) |
| Printing width(mm) | 54mm/108mm/216mm/324mm(customizable) |
| Material width(mm) | 450mm/650mm(customizable) |
Print Speed (Varies according to Printhead) | Single color: 0-120m/hrs Multi-color: 0-40m/hrs |
| Flatbed Type | Auto continual conveyor, Vacuum adsorption table option available |
| Media Release device | Manual feeding/ customized feeder *Optional |
| Media Take up device | Take up tray *Optional |
| X axis adjustment | Quality linear rails + Ball screws |
| Z axis adjustable | Button & manual adjustment available |
| Control syetem | Novix Single Pass Control software, pre-installed in integrated computer on machine |
| RIP Software | RIIN software with color management (With ink consumption/ cost auto calculation) |
| Remote control software | Pre-installed in integrated computer on machine |
| Other option | Software interface secondary development available |
| Variable data editing software available | |
| I/O Interface, robot controlling conection support |
| Ink type | Oil-based Single Pass UV ink （Non-VOC） |
| Color Configuration | Single color; Multi-color: Cyan(C), Magenta(M), Yellow(Y), Black(K), White (W) |
| Ink supply | Continual ink supply system (CISS); Intelligent constant sub-ink tank pressure |
| Ink filter | Ink filtration system available to filtering oversized particles |
| Ink tank | 2500ML/color |
| Protection system | Automatic ink shortage alarm system, support ink refilled during printing |
| Anti clogging of Printhead | Automatic white ink stirring system; nagative pressure ink control |
| Cleaning & Maintenance system | Automatic cleaning ink station, auto flashing and maintanence |
| Temperature | 15℃~ 30℃ (59ºF～86ºF), Humidity 30%-70% |
| Voltage | 220V/AC(±10%), 50/60Hz, 1KW(Max.) |
| Acoustic noise level | 70db(A) or less |

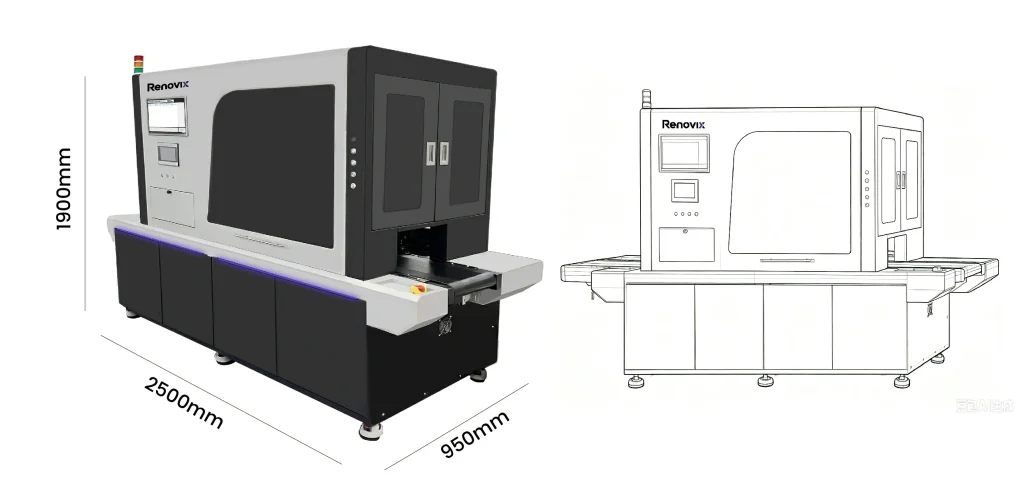

| Printer size(L*W*H) | 2297*989*1700mm |
| Package size(L*W*H) | 2500*1000*1900mm |
| Net Weight of printer | 560KG |
| Gross weight | 640KG |
| Package type | Inside foam protection, outside Ply-wood steel frame package |
| Operating system | Windows® 10 (64 bit) Recommend |
| CPU | Intel® Core™ i5, 2.5 GHz or more |
| HDD | Install space 1 GB or more; Working space 100 GB |
| Processor prefered | INTEL AMD |
| Storage | RAM>8G |
| Data Interface | Gigabit Ethernet port |
As a revolutionary technology in the field of industrial digital printing, the UV Single-Pass printer, with its core ultra-high-speed single-pass scanning technology, completely overturns the traditional multi-stage printing process. Equipped with a high-precision industrial-grade printhead and an instant UV curing system, It can achieve high-speed printing of over 100 meters per minute with high resolution for single color printing, seamlessly adapting to various materials such as plastics, metals, and glass. Its plate-free, one-click start feature precisely addresses the needs of personalized customization and large-scale orders, providing intelligent printing solutions for industries such as packaging, building materials, and home furnishings that combine flexibility, stability, and breakthrough production capacity.
The fundamental difference lies in printing efficiency. Traditional flatbed printers require multiple back-and-forth movements above the substrate to complete the print, while UV Single-Pass technology keeps the print head stationary, allowing the substrate to pass underneath in a single pass for instant printing. This makes it far faster than traditional equipment and is designed specifically for large-scale industrial production.
The UV Single Pass printer offers ultimate efficiency and cost-effectiveness for large-scale production. It achieves high-speed production exceeding 100 meters per minute, significantly reducing unit costs. Simultaneously, it combines the flexibility of digital printing, eliminating the need for plate making and easily handling variable data and personalized orders, enabling “printing from a single sheet at the same speed for tens of thousands of sheets.”
The UV Single-Pass printer boasts exceptional material adaptability. It can print directly on virtually any flat or roll-to-roll hard and soft material, including plastics, PVC, acrylic, metal, glass, wood, and various composite films. Regarding thickness, our equipment typically supports materials from 0-150mm, which can be configured to meet your specific business needs.
Thanks to the instant curing properties of UV inks, printed patterns exhibit excellent adhesion, scratch resistance, and UV protection. Prints dry instantly and are durable; we can provide samples for your testing.
We have designed a highly intelligent operating system with an intuitive interface that operators can easily master after standard training. The equipment integrates an advanced automatic maintenance system and remote diagnostic functions, which can minimize manual intervention, ensure continuous and stable operation of the production line, and reduce maintenance difficulty and downtime.
Novix team is dedicated to research and development, striving to bring you the smartest, most convenient, most suitable, and most cost-effective printing solutions to empower your brand.
