ZH Finished paper cup single pass side printer
Digital printers designed specifically for side printing on finished product packaging
Digital printers designed specifically for side printing on finished product packaging
Utilizing Single-Pass technology, high-speed, high-definition printing is performed directly on the sides of finished paper cups, lunch boxes, and other packaging. No plate making is required, perfectly suited for small-batch customization and personalized packaging needs, injecting a vibrant touch into your brand.
* Printing cost as low as $0.02/㎡
* Industrial piezoelectric printhead, Print more efficiently.
* Save labour cost, automatic belt convayor with vaccume table, continous high-speed printing
* Light-weight smaller industrial design, easy to move and operate, save space.
* More flexible, size customization available, to meet the demands of your small or large batch production, without complicated platemarking process.
* Fast drying water-bsaed environmentally friendly ink, ink dries immediately after printing, pattern is waterproof and anti-fouling after printing.

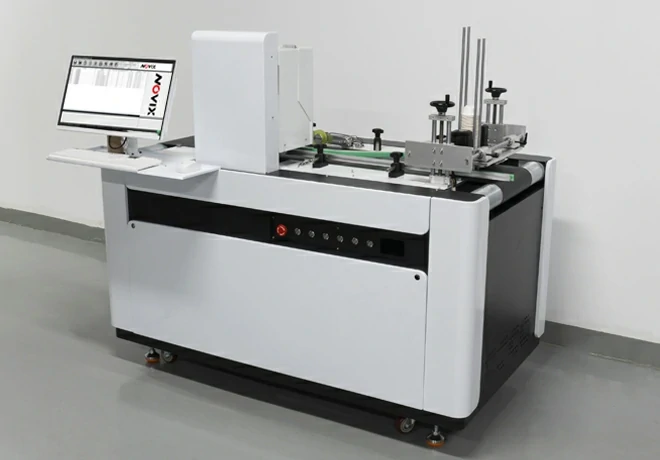

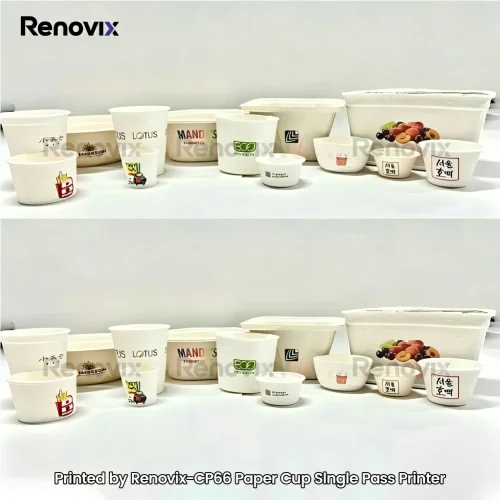

Novix cup-side single-pass printer enables high-speed, full-color CMYK printing and boasts unparalleled versatility, allowing direct printing on a wide range of products across various industries, from paper cups and lunchboxes to tea canisters and gift boxes.

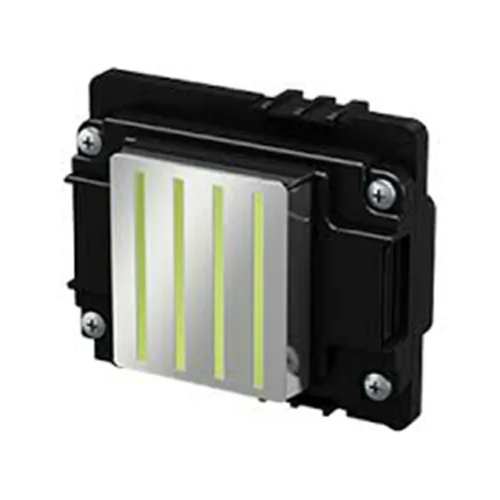

Employing an industrial-grade piezoelectric printhead, it precisely controls tiny ink droplets, delivering exceptionally clear, high-resolution images at astonishing speeds. Its robust mechanism ensures stable and reliable output even in demanding high-volume production environments, while its broad compatibility with a wide range of environmentally friendly inks provides unparalleled flexibility to meet diverse packaging needs.
Direct CMYK full-color printing empowers unlimited creativity in packaging. Reproduces vivid and realistic images and smooth color gradients, perfectly showcasing brand logos, photographs, and complex designs, making your paper cups, lunch boxes, and other packaging stand out in the market.
Novix uses environmentally friendly, food-grade water-based pigment inks that deliver vibrant and long-lasting colors, ensuring perfect color reproduction on a variety of items such as paper cups, teacups, and paper bowls.
Every user’s packaging product size, height, and printing needs are different. Novix has a professional technical team and engineers who can tailor a complete, intelligent, and automated printing solution to your specific needs.
Contact the Novix team now!
Dedicated research and development and excellent manufacturing quality give you a unique and reliable digital printer, empowering your brand/products.

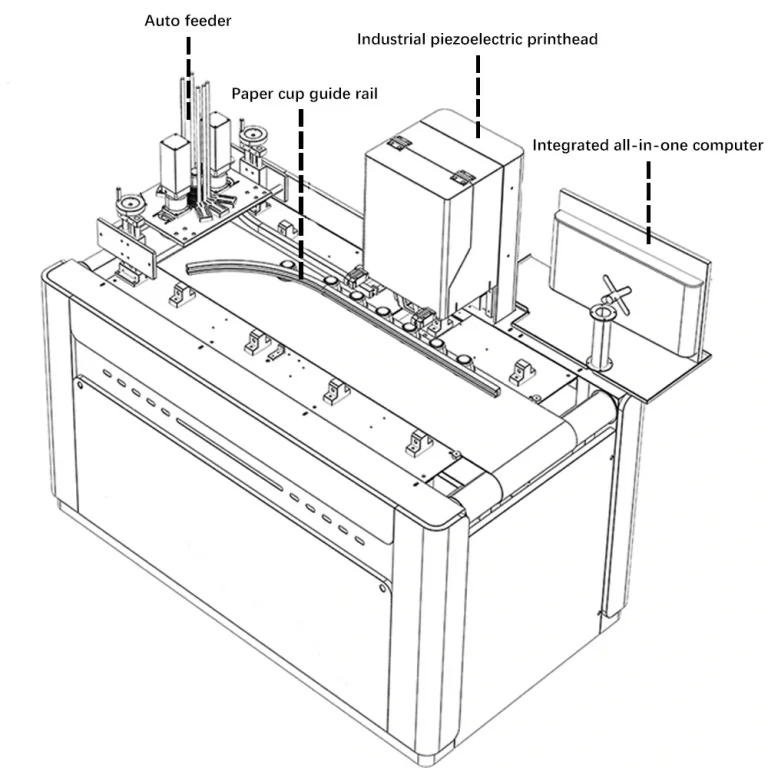

This large-format, high-performance computer-integrated printer comes pre-installed and tested with software, and the Novix team can remotely access the computer for assistance.

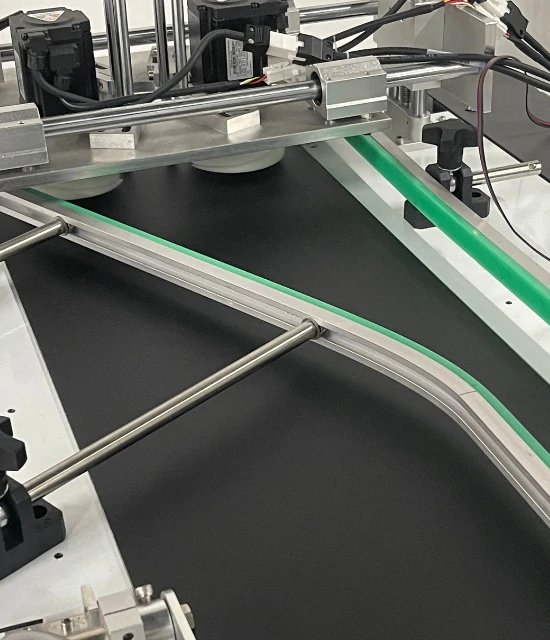

Rubber anti-skid tracks, one-way transmission, to prevent slipping.
CISS ink supply system, more
stable and less easy to cause bubble in the printheads.
For better ink fluency and stable printing.

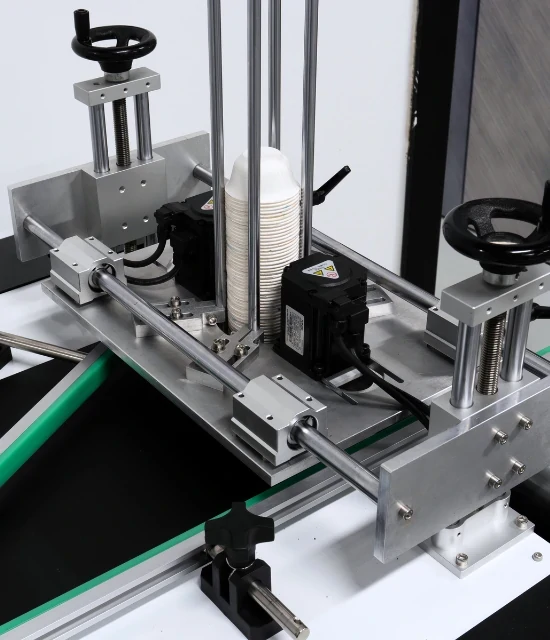

Save labor costs and ensure more accurate and smooth feeding.
One-button START control sync speed printing for Speed UP and DOWN, amazingly user-friendly to control the whole machine
One person can easily adjust the printer position.
Good products are revealed in the details.
| Print head | Industrial piezoelectric printhead |
| Technology | Advanced micro piezo inkjet technology |
| Ink drop Volume | 6PL |
| Resolution | 300*300/300*600/300*1200 dpi |
| Print Speed | 0-401m/mins |
| Printhead Protection Technology | Auto carriage anti-scratch kit |
| Printing width(mm) | 33mm (customizable) |
| Print height(mm) | 150mm |
| Machine for Material width(mm) | 300mm |
| Feeder method | Automatic feeding |
| Flatbed Type | Vacuum adsorption, auto continual conveyor |
| Control syetem | Touch screen control panel |
| Ink type | Environmentally friendly odorless pigment ink |
| Color Configuration of printing | Cyan(C), Magenta(M), Yellow(Y), Black(K) |
| Ink tank | 1500ML/color |
| Ink supply | Multi-layer filter/secondary ink cartridge thermostat/ negative pressure ink supply |
| Temperature | 15℃~ 30℃ (59ºF～86ºF), Humidity 30%-70% |
| Voltage | 220V/AC(±10%), 50Hz, 2KW(Max.) |
| Acoustic noise level | 70db(A) or less |

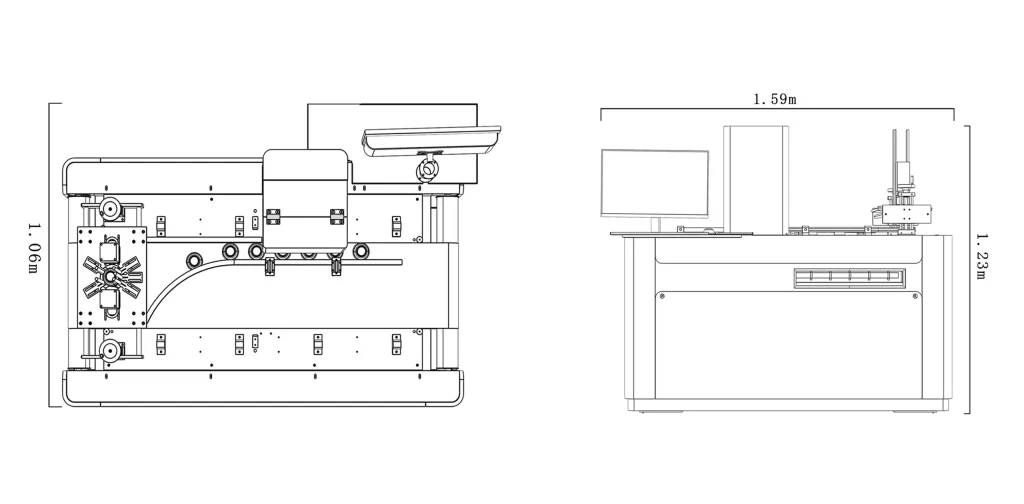

| Printer size(L*W*H) | 1590*1060*1230mm |
| Package size(L*W*H) | 1650*980*1580mm |
| Net Weight of printer | 230KG |
| Gross weight | 300KG |
| Package type | Inside foam protection, outside Ply-wood steel frame package |
| Operating system | Windows® 7/10 (64 bit) Recommend |
| CPU | Intel® Core™ i5, 2.5 GHz or more |
| HDD | Install space 1 GB or more; Working space 100 GB |
| Processor prefered | INTEL AMD |
| Storage | RAM>8G |
| Data Interface | Gigabit Ethernet port |

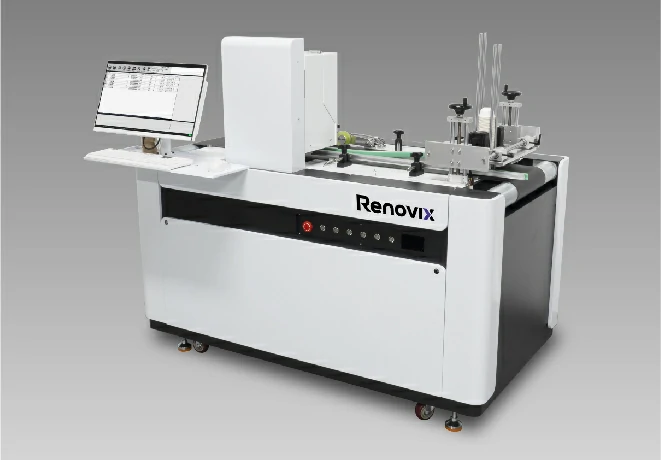

Novix Single Pass cup side printer redefines finished product printing. It perfectly combines industrial-grade efficiency with the boundless flexibility of digital printing, allowing brands to achieve direct, vibrant, full-color image printing on finished packaging at unprecedented speeds and costs. Whether enhancing brand image or responding to rapidly changing market demands, it is the ultimate solution for creating differentiated packaging.
We use industrial-grade piezoelectric printheads and high-quality environmentally friendly inks, producing vibrant, high-definition full-color images while ensuring the printed materials are safe and odorless, meeting the environmental requirements of food packaging and modern brands.
Absolutely not. This is digital printing, requiring no physical plate-making, screen printing stencils, or molds. Simply modify the design file on your computer to start printing immediately, achieving “zero-cost” order changes.
You can import images into your printing software to view ink consumption and calculate costs. Ink consumption is as low as 0.01 ml, depending on the design, which is highly competitive in the digital printing industry. More importantly, it eliminates the high costs of plate making and mold creation in traditional printing, making it particularly suitable for large-volume orders and significantly reducing your overall production costs.
The process is extremely simplified. You only need to provide TIFF, PDF, or JPG files, and our system will integrate seamlessly. After uploading the files, the operator can start printing with just one click, truly achieving rapid transformation from “design to finished product.”
Maintenance is very simple. We have a professional aftersales team to provide one-on-one guidance and training, so you don’t need to worry.
Novix team is dedicated to research and development, striving to bring you the smartest, most convenient, most suitable, and most cost-effective printing solutions to empower your brand.
