ZH Auto Packaging Inkjet Priter
Entry level, small packagings printing, economical option
Entry level, small packagings printing, economical option

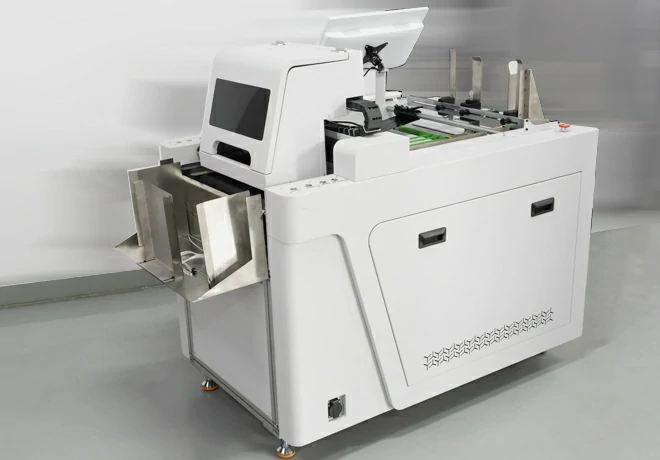

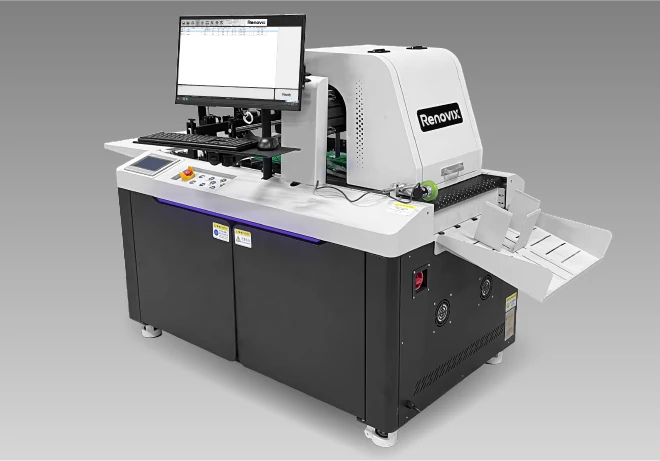

Mini single pass printer allows startups to enjoy an industrial-grade printing experience. No plate making is needed; one-click start delivers beautiful printing results on packaging. You can focus on design, and leave the rest to this one-way printer.
* The machine adopts a profile structure, with a total length of 1.7 meters.
* The conveyor belt is 500 mm wide and made of 2.0 mm black PVC material.
* High-precision servo motor, printing speed 0-40 m/min.
* Maximum printing height is 100 mm, custom height supported.

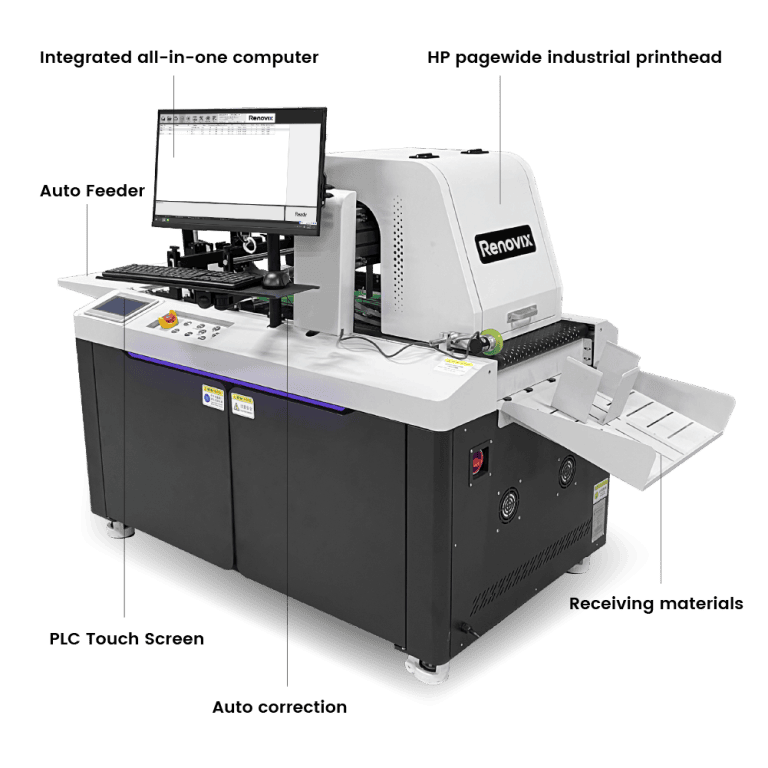

* Integrates automatic feeding, printing, and receiving all in one machine; compact yet powerful, the automated design saves 80% of labor costs.
* Equipped with omnidirectional casters.
* 20VAC 50Hz 1100W power supply (maximum power)
* Product printing error 1 mm
Novix Single pass printer unlock packaging solutions for various industries: from packaging to food packaging to gift packaging, Single pass digital printers offer CMYK full-color, high-speed direct printing solutions.
In the field of industrial-grade single-pass digital printing, the print head is not only a core component, but also the soul that determines production efficiency and output quality.
We’ve combined the powerful performance of the HP FI1000 printhead with our single-pass printer to bring you the ultimate printing experience.
Whether for packaging printing, kraft paper printing, logistics packaging printing, lunch box printing, label printing, gift printing, disposable packaging printing, stationery printing, or other applications, it can achieve fine printing up to 1200dpi. This means that whether it’s text, lines, or gradient effects, one printer can print CMYK full-color on your packaging.
Novix uses environmentally friendly, food-grade water-based inks, with a choice of pigment ink and dye ink.
The colors are vibrant and fade-resistant, ensuring perfect color reproduction whether used for printing on paper bags, paper cups, pizza boxes, wrapping paper, cartons, and more.
Every user’s packaging product size, height, and printing needs are different. Novix has a professional technical team and engineers who can tailor a complete, intelligent, and automated printing solution to your specific needs.
Contact the Novix team now!
Dedicated research and development and excellent manufacturing quality give you a unique and reliable digital printer, empowering your brand/products.

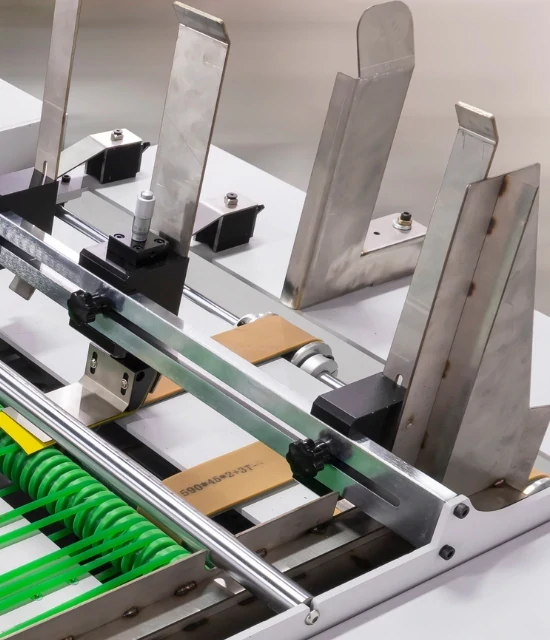

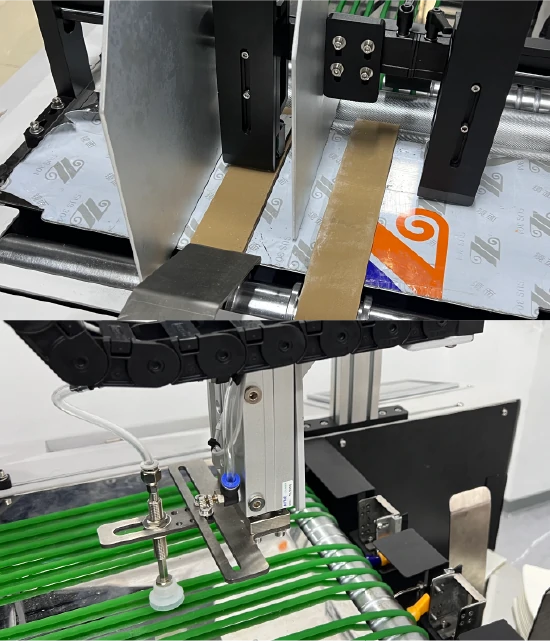

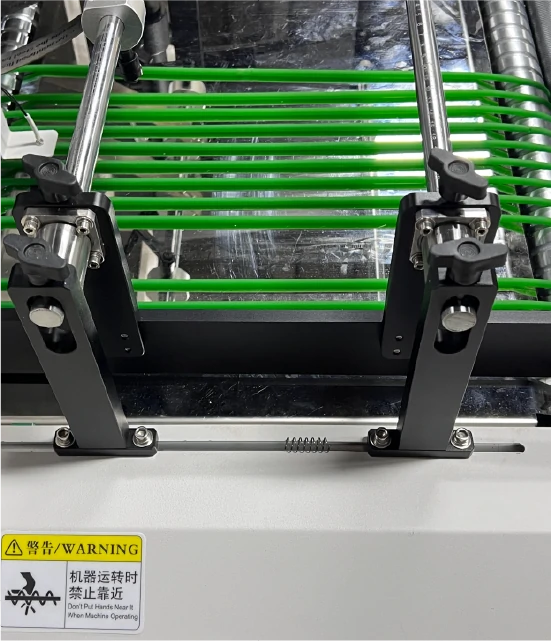

The automatic integrated friction feeder allows less labour intervene, time-saving and cost-saving.

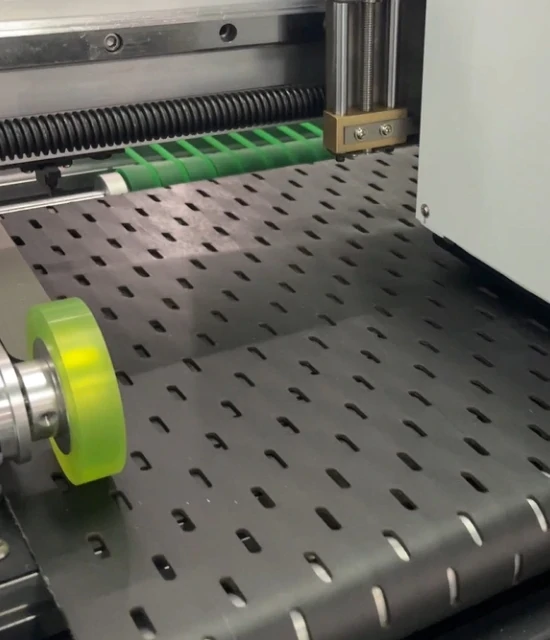

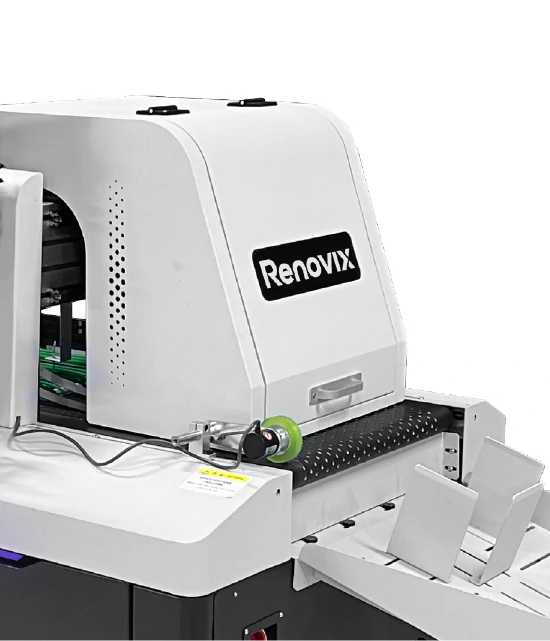

1200dpi encoder to keep up with the printing speed, to avoid any misalignment of the printing.

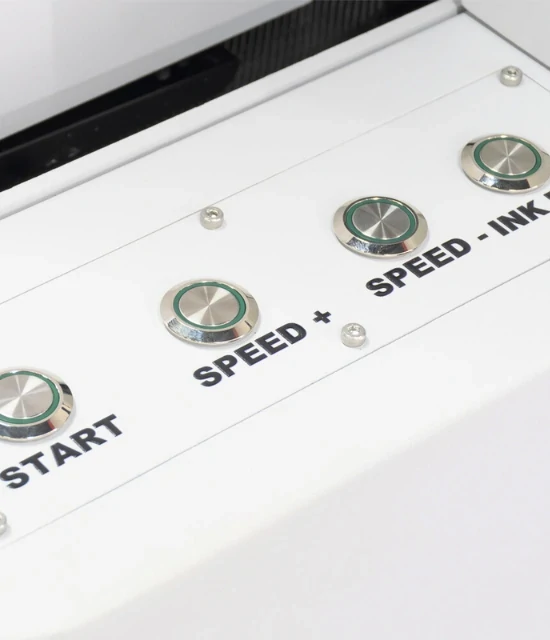

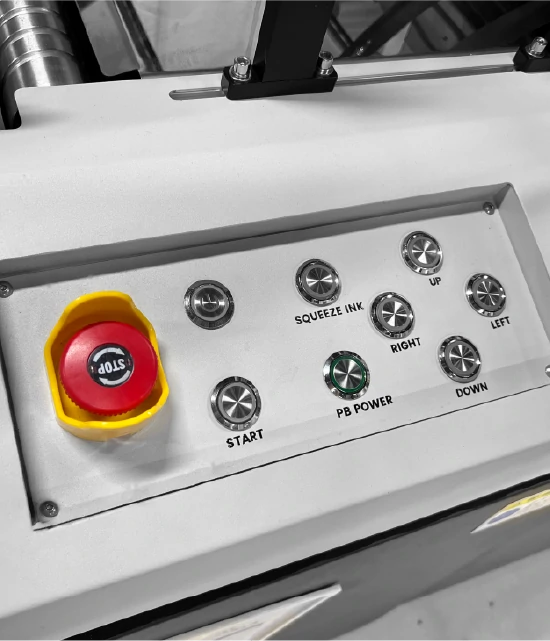

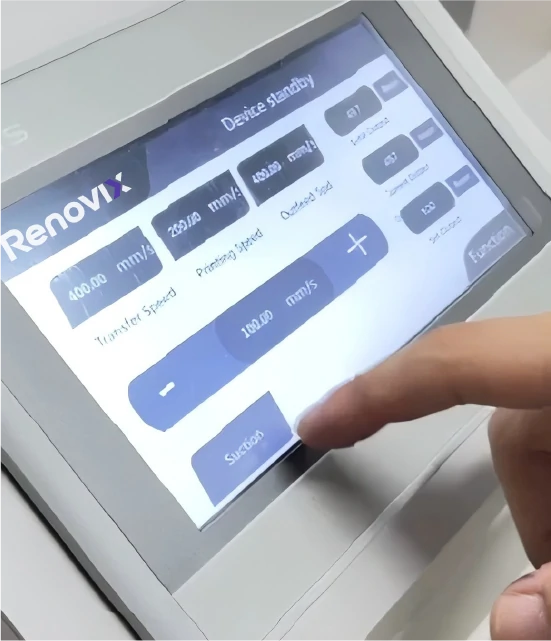

One-button START control sync speed printing for Speed UP and DOWN, amazingly user-friendly to control the whole machine.

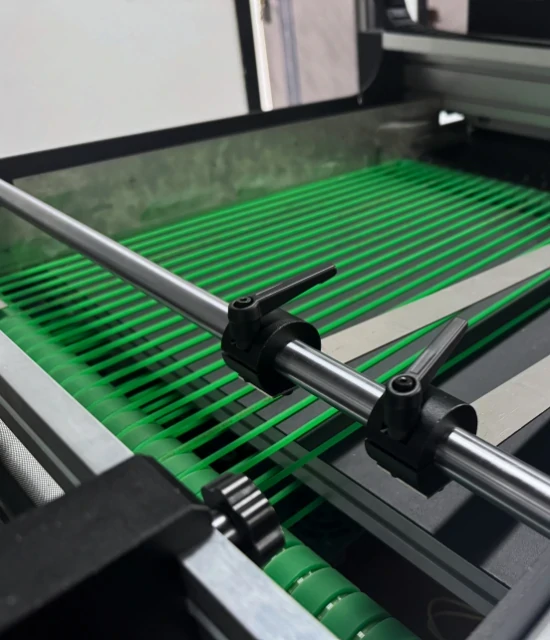

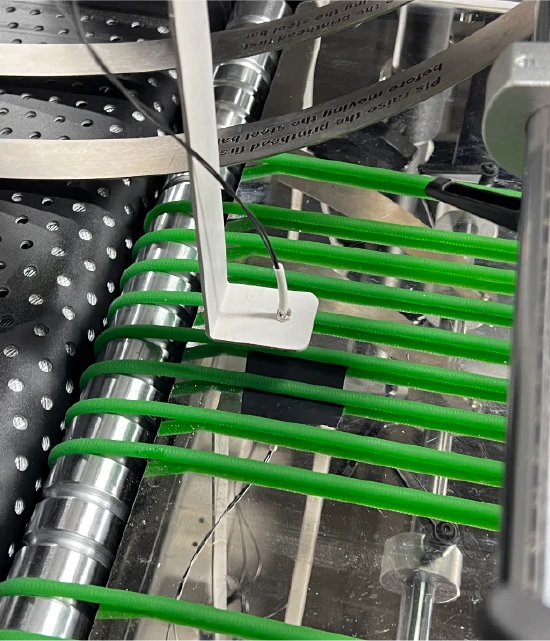

When printing products, Effectively prevent inaccurate printing position, missing printing, etc.

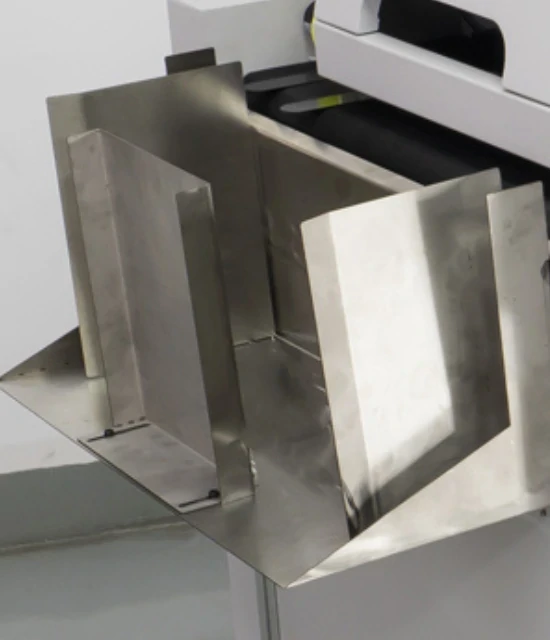

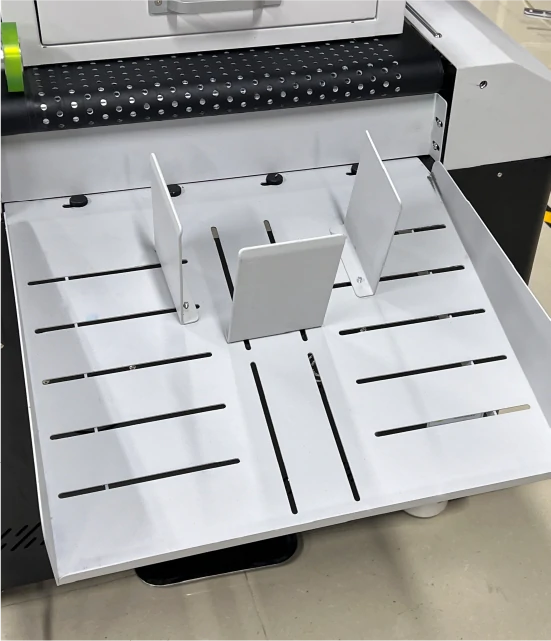

Automatically receives printed products without constant human supervision.
Demonstrate brand strength
Good products are revealed in the details.
| Print head | Industrial HP Fi1000 printhead |
| HP Printhead Technology | Advanced thermal bubble-inkjet technology |
| Ink drop Volume | 6PL |
| Resolution | 1200*300/1200*600/1200*1200dpi |

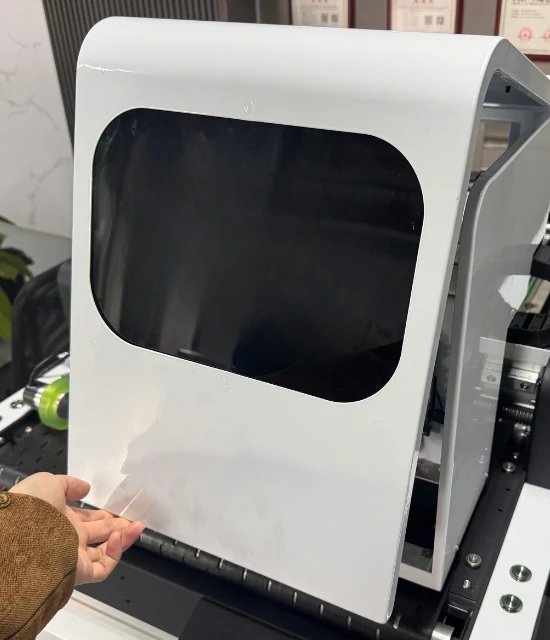

| Printhead Protection Technology | Auto carriage anti-scratch kit |
| Printing width(mm) | Reach 305mm print width per printhead |
| Print height(mm) | 0-100mm (Support customization) |
| Print Speed | 0-40m/mins |
| Machine for Material width(mm) | 500mm |
| Feeder method | Automatic Feeder with correction part |
| Flatbed Type | Auto continual conveyor |
| Printer holder size | L 133.5cm * W 71cm * H 72cm |
| Ink type | Environmentally friendly odorless waterbased ink |
| Color Configuration of printing | Cyan(C), Magenta(M), Yellow(Y), Black(K) |
| Ink tank | 500ML/color |
| Ink supply | Positive pressure ink supply continuously |
| Temperature | 15℃~ 30℃ (59ºF～86ºF), Humidity 30%-70% |
| Voltage | 220VAC 50Hz 1100W electricity consumption (maximum power) |
| Acoustic noise level | 70db(A) or less |

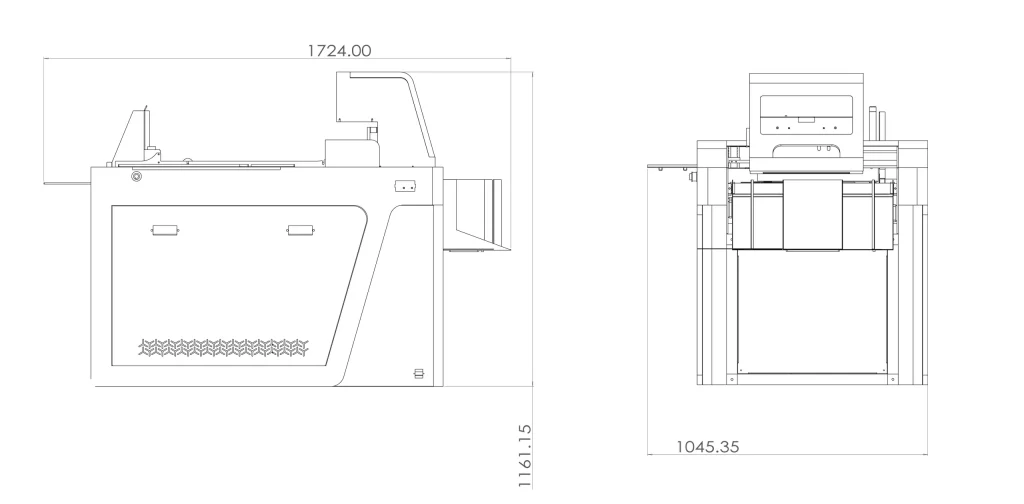

| Printer size(L*W*H) – including collection part | L 1724mm * W 1045mm * H 1161mm |
| Package size(L*W*H) | L 1950mm * W 1550mm * H 1180mm |
| Net Weight of printer | 140KG |
| Package type | Inside foam protection, outside Ply-wood steel frame package |
| Operating system | Windows® 7/10 (64 bit) Recommend |
| CPU | Intel® Core™ i5, 2.5 GHz or more |
| HDD | Install space 1 GB or more; Working space 100 GB |
| Processor prefered | INTEL AMD |
| Storage | RAM>8G |
| Data Interface | Gigabit Ethernet port |
The mini single-pass printer revolutionizes efficiency in space-constrained production environments. This compact system features a streamlined design and utilizes the same core single-pass printing technology, enabling high-quality, full-color printing for small-batch production with minimal footprint and maximum flexibility.
Mini model retains the core single-pass printing technology but features a more compact design, offering the same high quality at a lower entry cost, making it ideal for startups or packaging printing novices.
Absolutely. Its compact design, intuitive interface, and automated feeding and receiving systems are designed to minimize staffing needs. A single operator can easily manage the entire printing process.
It uses the same high-precision color management technology as our industrial models, ensuring consistent, vibrant colors from the first product to the last.
Maintenance is very simple. We have a professional after-sales team to provide one-on-one guidance and training, so you don’t need to worry.
Novix team is dedicated to research and development, striving to bring you the smartest, most convenient, most suitable, and most cost-effective printing solutions to empower your brand.
