ZH Integrated automated production line packaging printer
Special for egg box, cartons 3 sides printing same time
Special for egg box, cartons 3 sides printing same time
Single-Pass three-sided digital printer can simultaneously print high-quality images on three sides of a packaging box with a single scan. No tedious positioning or flipping is required, offering ultimate efficiency and stunning visual effects for your products.
* Printing cost as low as $0.02/㎡
* Industrial HP Fi1000 printhead + Industrial piezoelectric printhead, support different printing width.

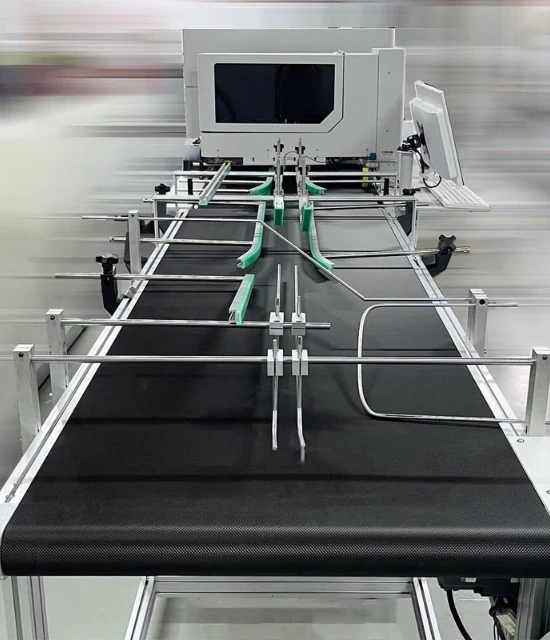

* Save labour cost, automatic belt convayor with vaccume table, continous high-speed printing
* Light-weight smaller industrial design, easy to move and operate, save space.
* More flexible, size customization available, to meet the demands of your small or large batch production, without complicated platemarking process.
* Fast drying water-bsaed environmentally friendly ink, ink dries immediately after printing, pattern is waterproof and anti-fouling after printing.
Novix Single pass printer unlock packaging solutions for various industries: from packaging to food packaging to gift packaging, Single pass digital printers offer CMYK full-color, high-speed direct printing solutions.

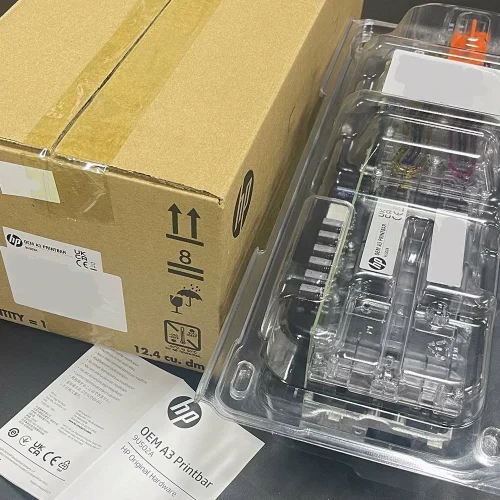

The combination of the Industrial HP Fi1000 and the Industrial Piezoelectric Printhead achieves a perfect balance of speed, accuracy, and reliability, ensuring printing stability on various materials such as egg cartons and cardboard boxes, and offering ultra-low maintenance costs.

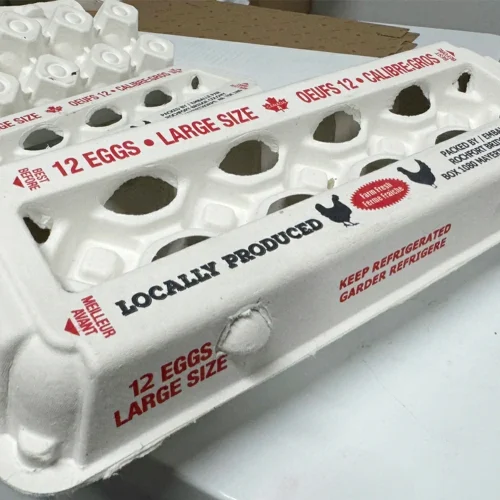

Whether it’s egg cartons, pull-tab egg cartons, corrugated cardboard egg cartons, kraft paper egg cartons, blotting paper egg cartons, or biodegradable composite egg cartons, it can achieve high-resolution printing up to 1200 dpi. This means that whether it’s text, lines, or gradient effects, one printer can complete full-color CMYK printing on your packaging.
Novix uses environmentally friendly, food-grade water-based inks, offering both pigment and dye inks.
Vibrant and long-lasting colors ensure perfect color reproduction on packaging.
Every user’s packaging product size, height, and printing needs are different. Novix has a professional technical team and engineers who can tailor a complete, intelligent, and automated printing solution to your specific needs.
Contact the Novix team now!
Dedicated research and development and excellent manufacturing quality give you a unique and reliable digital printer, empowering your brand/products.

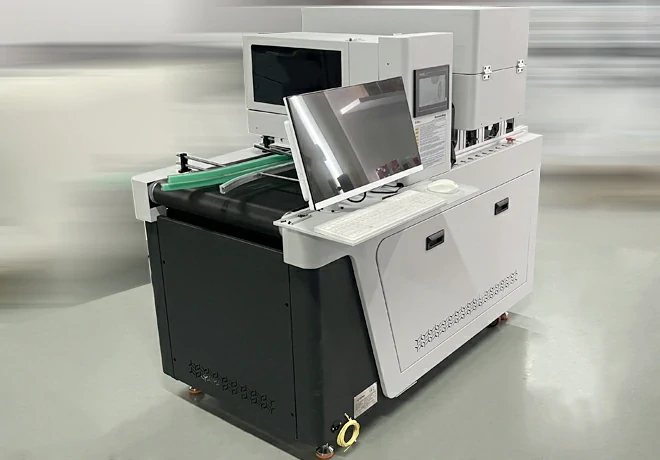

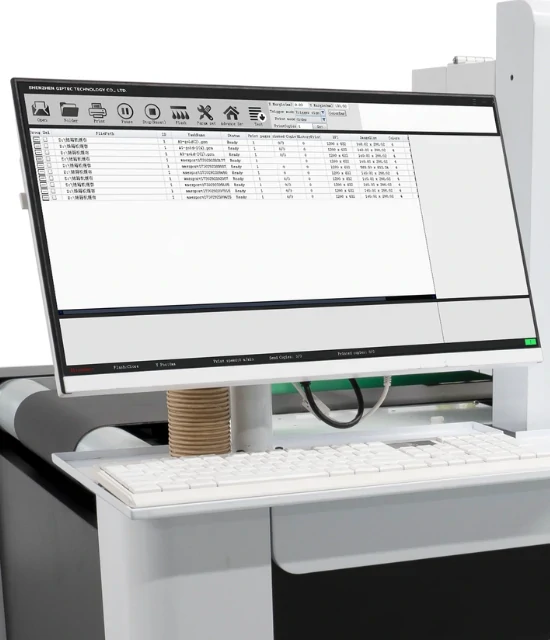

This large-format, high-performance computer-integrated printer comes pre-installed and tested with software, and the Novix team can remotely access the computer for assistance.

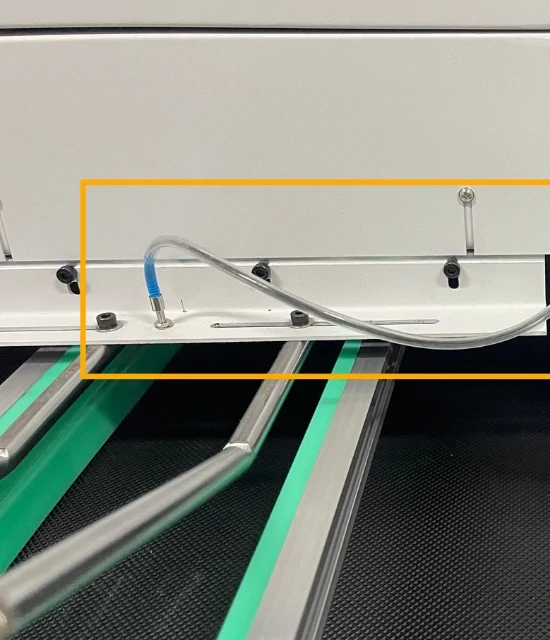

High precision infrared sensor, accurate identidication of various materials through.
CISS ink supply system, more
stable and less easy to cause bubble in the printheads.
For better ink fluency and stable printing.

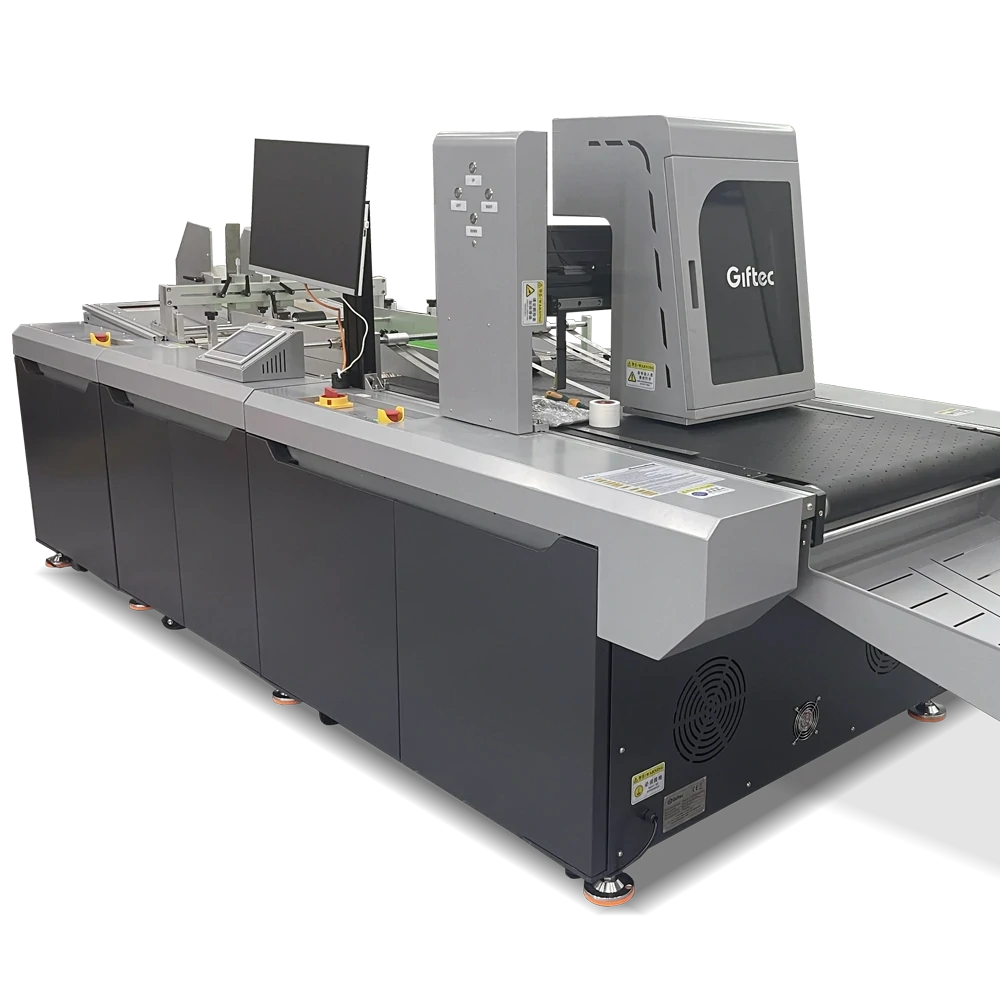

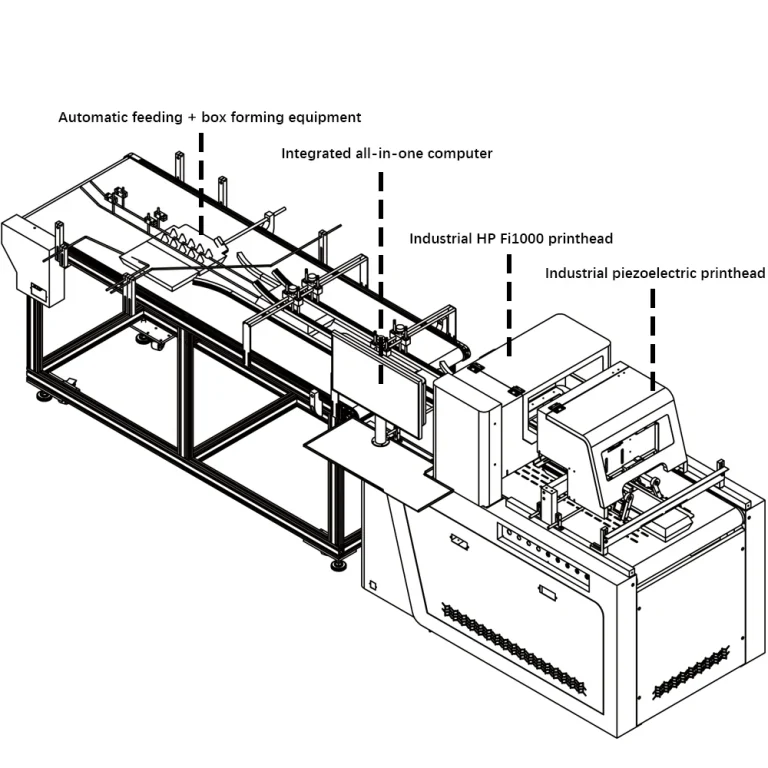

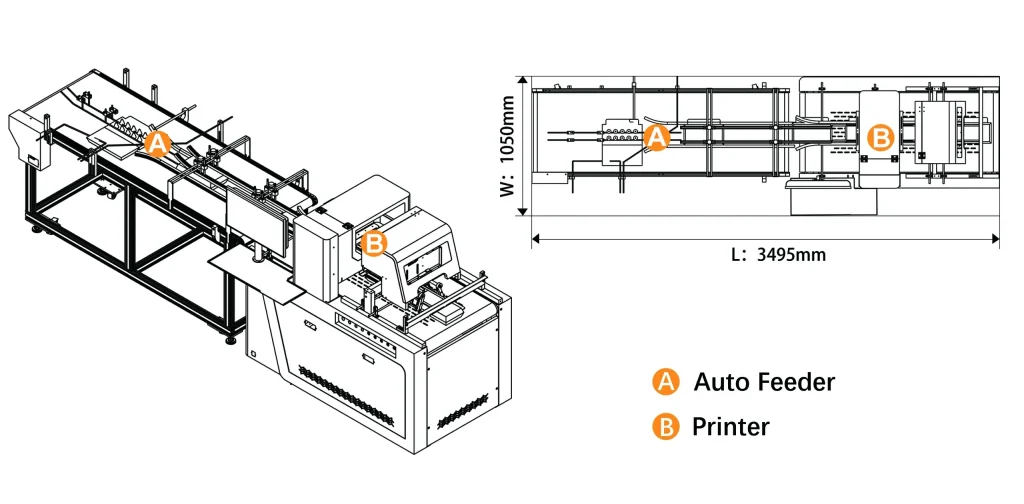

Automatic feeder specially designed for egg cartons, suitable for all sizes of egg cartons, no need to fold the boxes manually.

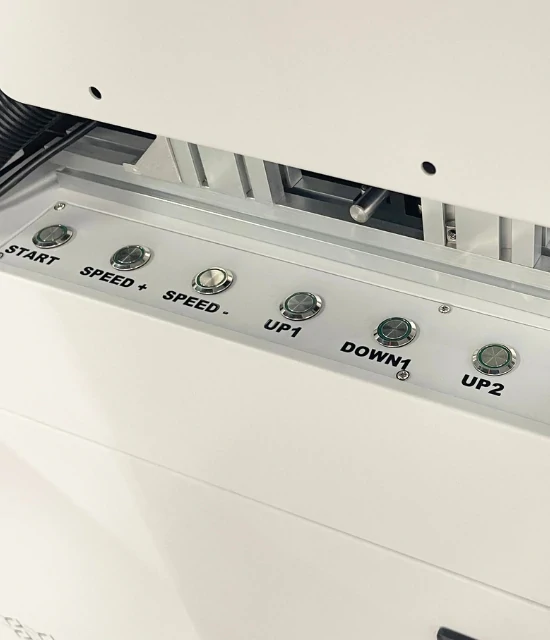

One-button START control sync speed printing for Speed UP and DOWN, amazingly user-friendly to control the whole machine

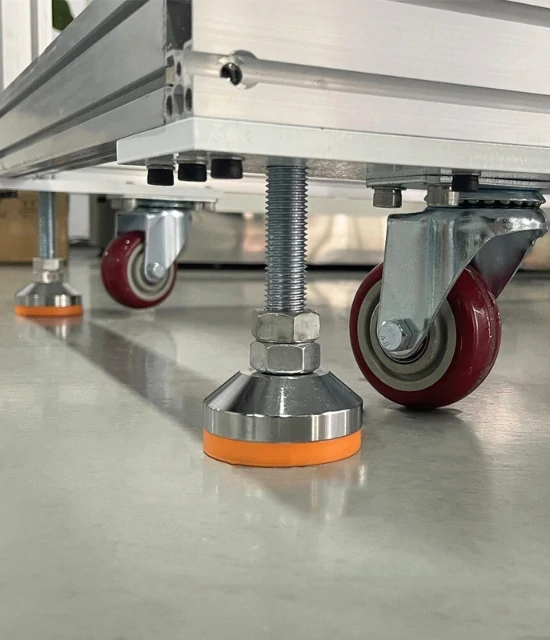

One person can easily adjust the printer position.
Good products are revealed in the details.
| Print head | Industrial HP Fi1000 printhead + Industrial piezoelectric printhead |
| HP Printhead Technology | Advanced thermal foaming bubble-inkjet technology |
Industrial Printhead Technology | Advanced micro piezo inkjet technology |
| Ink drop Volume | 6PL |
| Resolution | 1200*300dpi, 1200*600dpi,1200*1200dpi |
| Printhead Protection Technology | Auto carriage anti-scratch kit |
| Printing width(mm) | Top from 33mm~330mm Side printing: 33mm (customizable) |
| Print height(mm) | 0~200mm (Support customization) |
| Print Speed | 0-40m/mins |
| Machine for Material width(mm) | 400mm Optional |
| Feeder method | Automatic feeding |
| Flatbed Type | Vacuum adsorption, auto continual conveyor |
| Ink type | Environmentally friendly odorless pigment ink |
| Color Configuration of printing | Cyan(C), Magenta(M), Yellow(Y), Black(K) |
| Ink tank | 1500ML/color |
| Ink supply | Multi-layer filter/secondary ink cartridge thermostat/ negative pressure ink supply |
| Temperature | 15℃~ 30℃ (59ºF～86ºF), Humidity 30%-70% |
| Voltage | 220V/AC(±10%), 50Hz, 2KW(Max.) |
| Acoustic noise level | 70db(A) or less |
| Printer size(L*W*H) | 1510*870*1350mm (Main printer) |
| Package size(L*W*H) | 1650*980*1580mm (Main printer) |
| Net Weight of printer | 260KG |
| Gross weight | 350KG |
| Package type | Inside foam protection, outside Ply-wood steel frame package |
| Operating system | Windows® 7/10 (64 bit) Recommend |
| CPU | Intel® Core™ i5, 2.5 GHz or more |
| HDD | Install space 1 GB or more; Working space 100 GB |
| Processor prefered | INTEL AMD |
| Storage | RAM>8G |
| Data Interface | Gigabit Ethernet port |
Our single-pass, three-sided digital printing press redefines the efficiency and possibilities of packaging printing. It combines advanced printhead technology with innovative mechanical design, designed to help brand owners and packaging manufacturers create stunning advertising visuals faster and more cost-effectively. For specific application scenarios, please contact our team of experts for customized solutions.
Utilizing single-print technology, printing can be performed simultaneously on the front and both sides of packaging materials. No flipping or secondary positioning is required, achieving unprecedented production efficiency.
It can be perfectly applied to egg cartons, corrugated boxes, cardboard boxes, etc., ensuring vibrant colors on various surfaces and sides.
Its core advantage lies in its extremely high efficiency. It combines multiple processes into one, significantly shortening the production cycle, making it ideal for bulk, high-frequency customized orders.
By eliminating multiple positioning and flipping operations, labor and time costs are significantly reduced. Meanwhile, the industrial-grade design ensures high uptime and low maintenance requirements, effectively reducing the overall operating cost per print run.
Novix team is dedicated to research and development, striving to bring you the smartest, most convenient, most suitable, and most cost-effective printing solutions to empower your brand.
