Advantages
1. Printing cost as low as $0.02/㎡
2. HP widepage industrial printheads + EPSON i1600/ i3200 Printhead, support different printing width.
3. Save labour cost, automatic belt convayor with vaccume table, continous high-speed printing
4. Light-weight smaller industrial design, easy to move and operate, save space.
5. More flexible, size customization available, to meet the demands of your small or large batch production, without complicated platemarking process.
6. Fast drying water-bsaed environmentally friendly ink, ink dries immediately after printing, pattern is waterproof and anti-fouling after printing.
Application

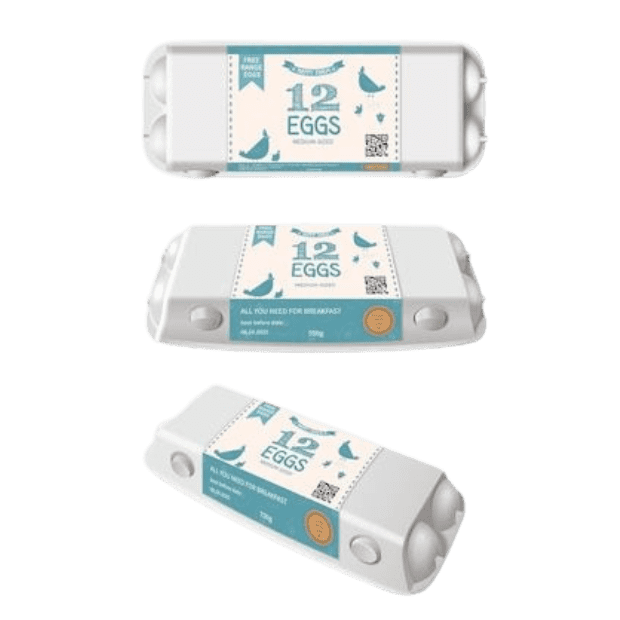

Optimal for printing Egg carton Box 、pulp egg carton、corrugated egg carton、kraft paper egg box、blotting paper egg carton、degradable composite egg carton, ect.

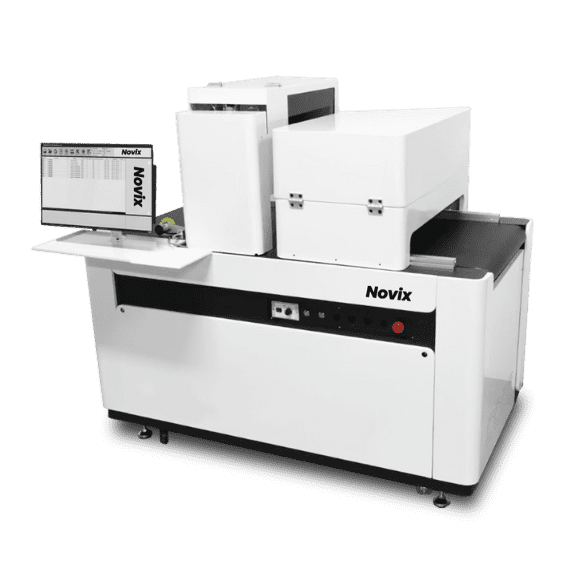

Printer name
Three-sided Single pass printer
| Print head | 1~3pcs * HP widepage industrial printheads + EPSON i3200/ i1600 printheads | |
| HP Printhead Technology | Advanced thermal foaming bubble-inkjet technology | |
| EPSON Printhead Technology | Advanced micro piezo inkjet technology | |
| Ink drop Volume | 6PL | |
| Resolution | 1200*300dpi, 1200*600dpi,1200*1200dpi | |
| Printhead Protection Technology | Auto carriage anti-scratch kit | |
| Printing width(mm) | HP printhead | A4 size head: 210,420,630mm/ A3 size head: 300mm,600mm Optional |
| EPSON printhead | 33mm （for sides printing) | |
| Print height(mm) | 200mm (Support customization) | |
| Print Speed | 20-40m/min | |
| Machine for Material width(mm) | 600mm, 800mm Optional | |
| Feeder method | Automatic feeding | |
| Flatbed Type | Vacuum adsorption, auto continual conveyor | |
| Control syetem | Touch screen control panel | |
| Ink type | Environmentally friendly odorless pigment ink | |
| Color Configuration of printing | Cyan(C), Magenta(M), Yellow(Y), Black(K) | |
| Ink tank | 1500ML/color | |
| Ink supply | Multi-layer filter/secondary ink cartridge thermostat/ negative pressure ink supply | |
| Temperature | 15℃~ 30℃ (59ºF～86ºF), Humidity 30%-70% | |
| Voltage | 220V/AC(±10%), 50Hz, 2KW(Max.) | |
| Acoustic noise level | 70db(A) or less | |
| Printer size(L*W*H) | 1510*870*1350mm (Main printer) | |
| Package size(L*W*H) | 1650*980*1580mm (Main printer) | |
| Net Weight of printer | 260KG | |
| Gross weight | 350KG | |
| Package type | Inside foam protection, outside Ply-wood steel frame package | |
| Operating system | Windows® 7/10 (64 bit) Recommend | |
| CPU | Intel® Core™ i5, 2.5 GHz or more | |
| HDD | Install space 1 GB or more; Working space 100 GB | |
| Processor prefered | INTEL AMD | |
| Storage | RAM>8G | |
| Data Interface | Gigabit Ethernet port | |
·1 person to operate, no technical skill needed.

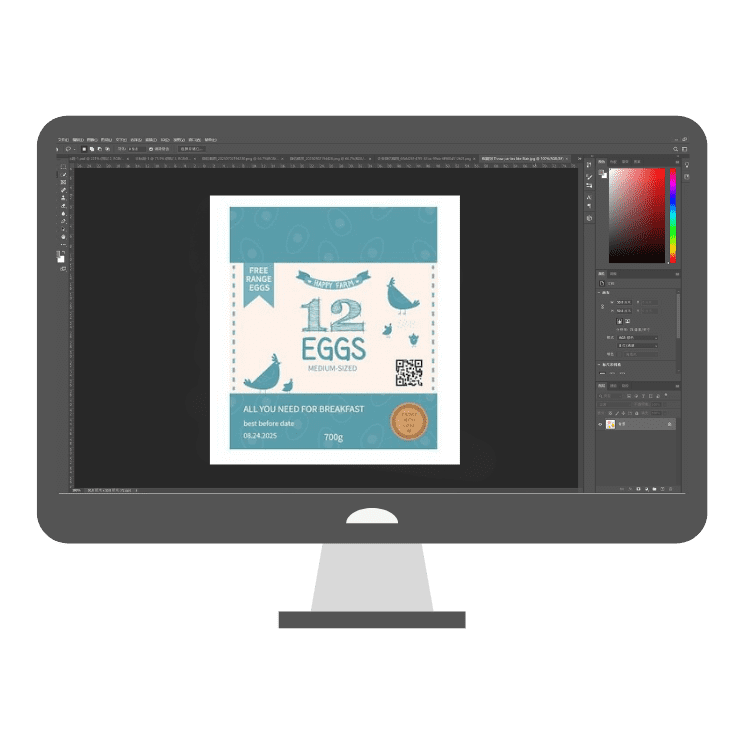

·Image import software, direct printing

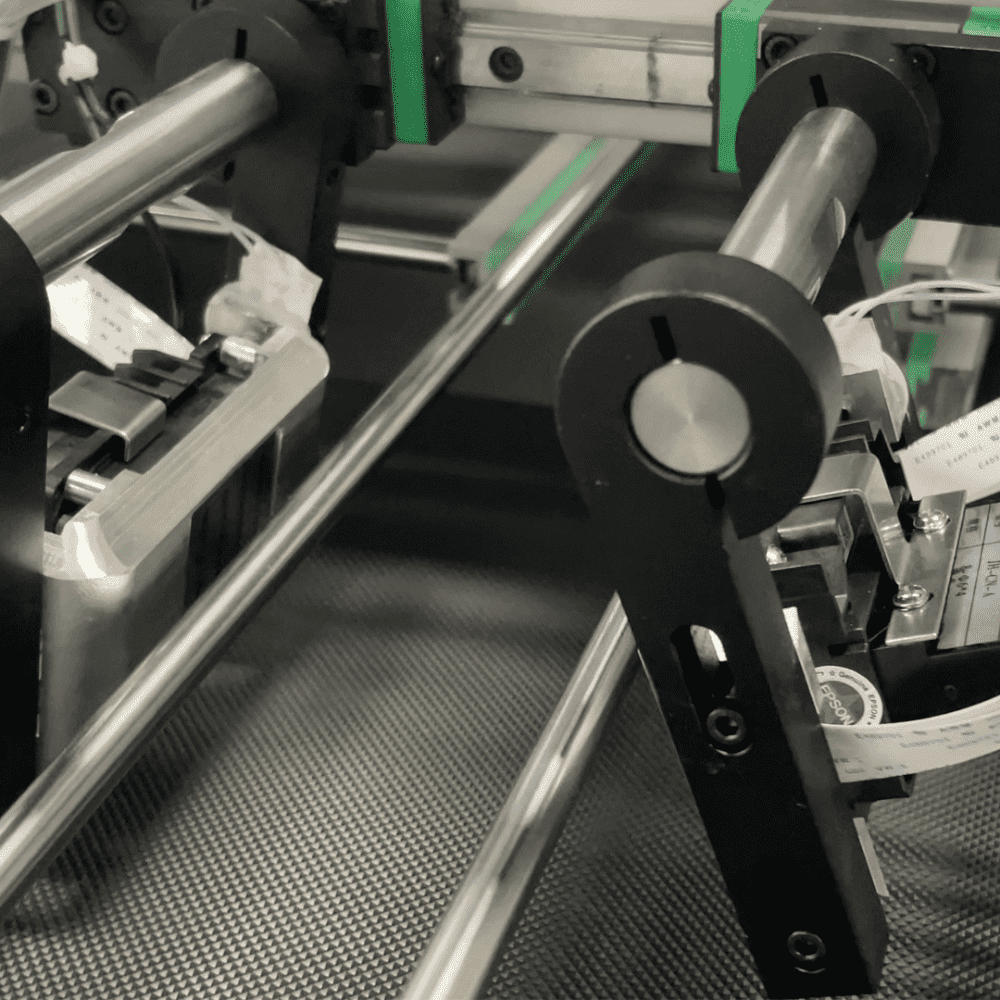

HP widepage industrial printheads + EPSON i1600/ i3200 Printhead, support different printing width.
No need to spend a lot of manpower to fold the boxes one by one and then put them into the printer. The feeder automatically completes this step, making the printing more accurate.

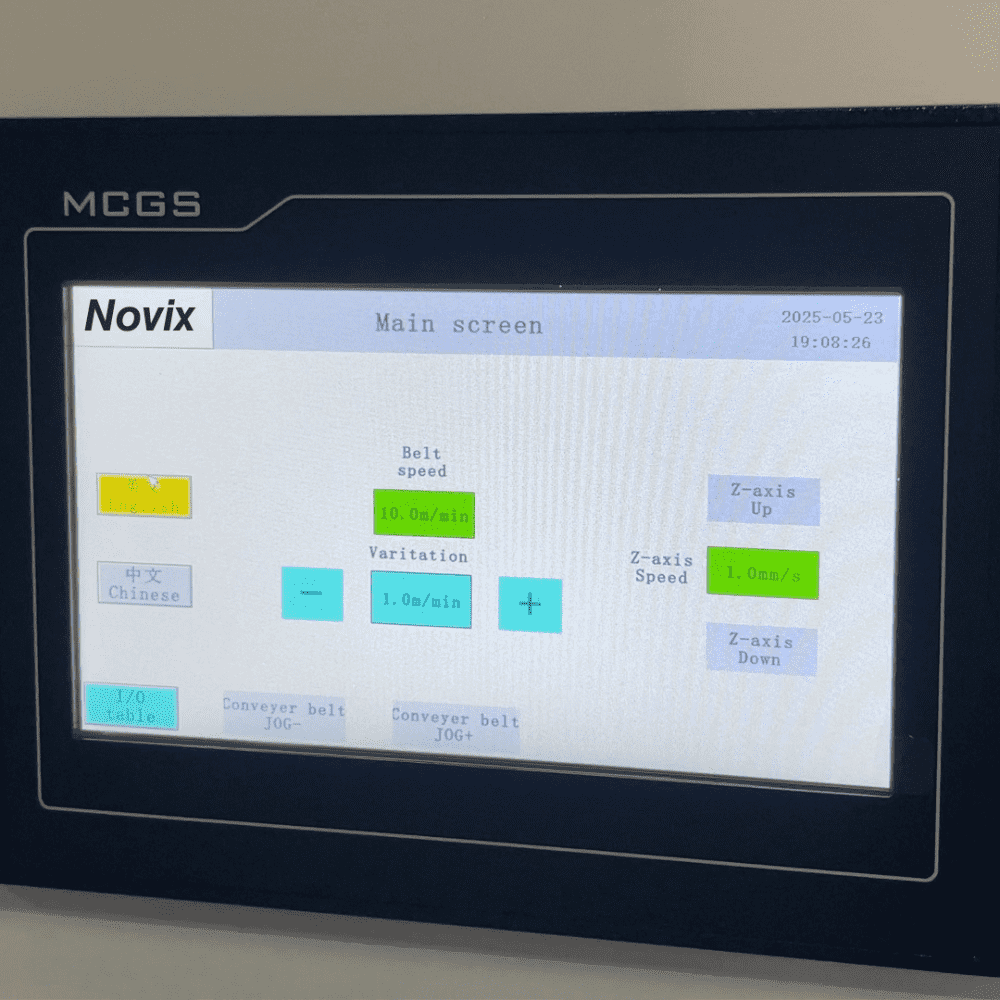

The printer not only has mechanical buttons, but also has a PLC operating system for visual operation of the printer.
Let your pattern be realized on the product

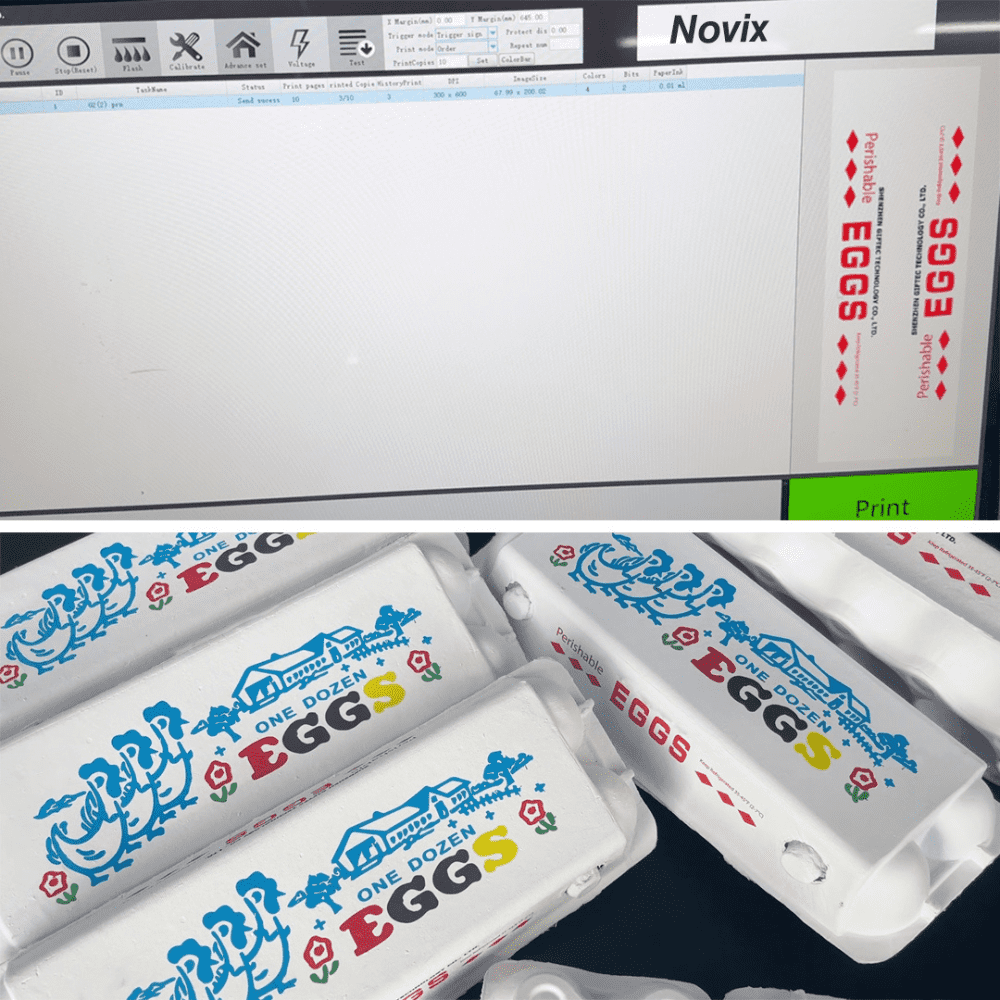

Novix upgraded Control software & RIP color management all in one output software, intelligent color management, accurate control, good color reduction, simple and clear interface, easy human-machine interaction and simple operation.
Rich and diverse product customization brings you rich business and profits
Good products are determined by details

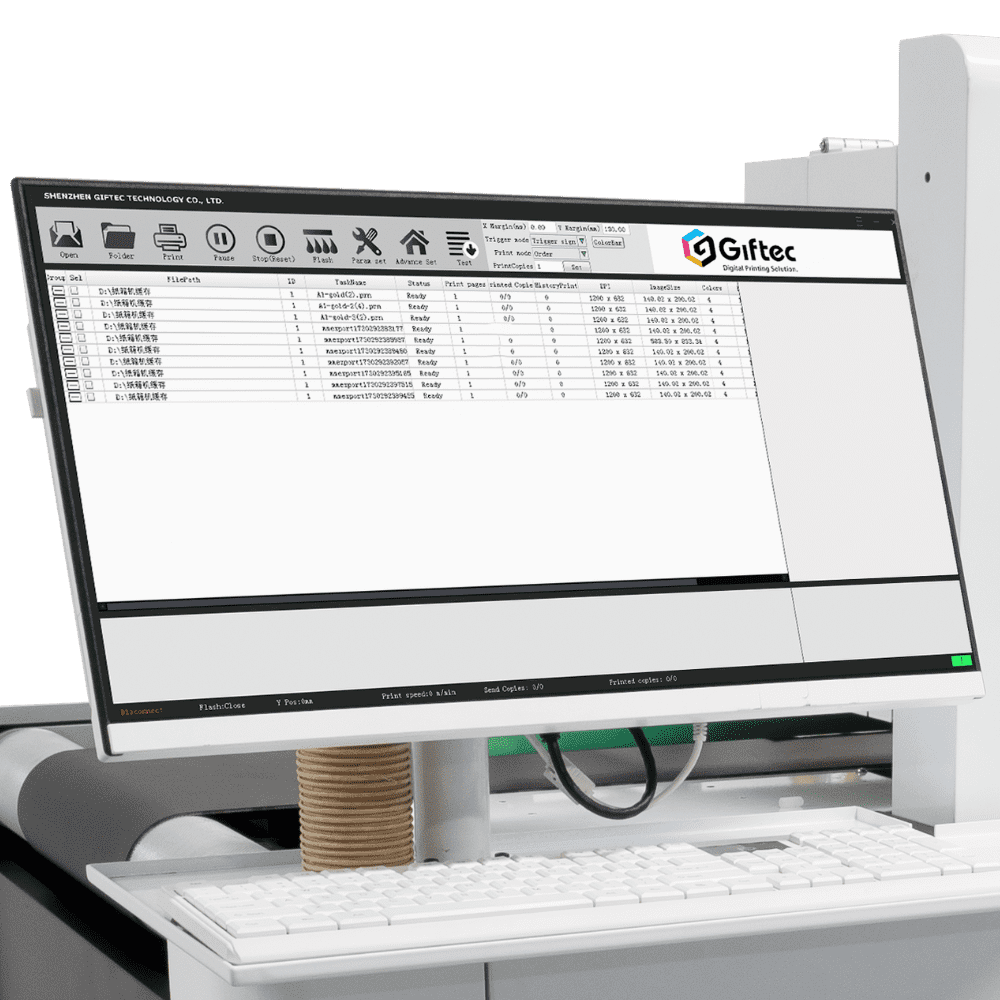

Super 24 inch computer integrated with printer, software pre-installed and tested, Giftec team can access the computer to remote assist.

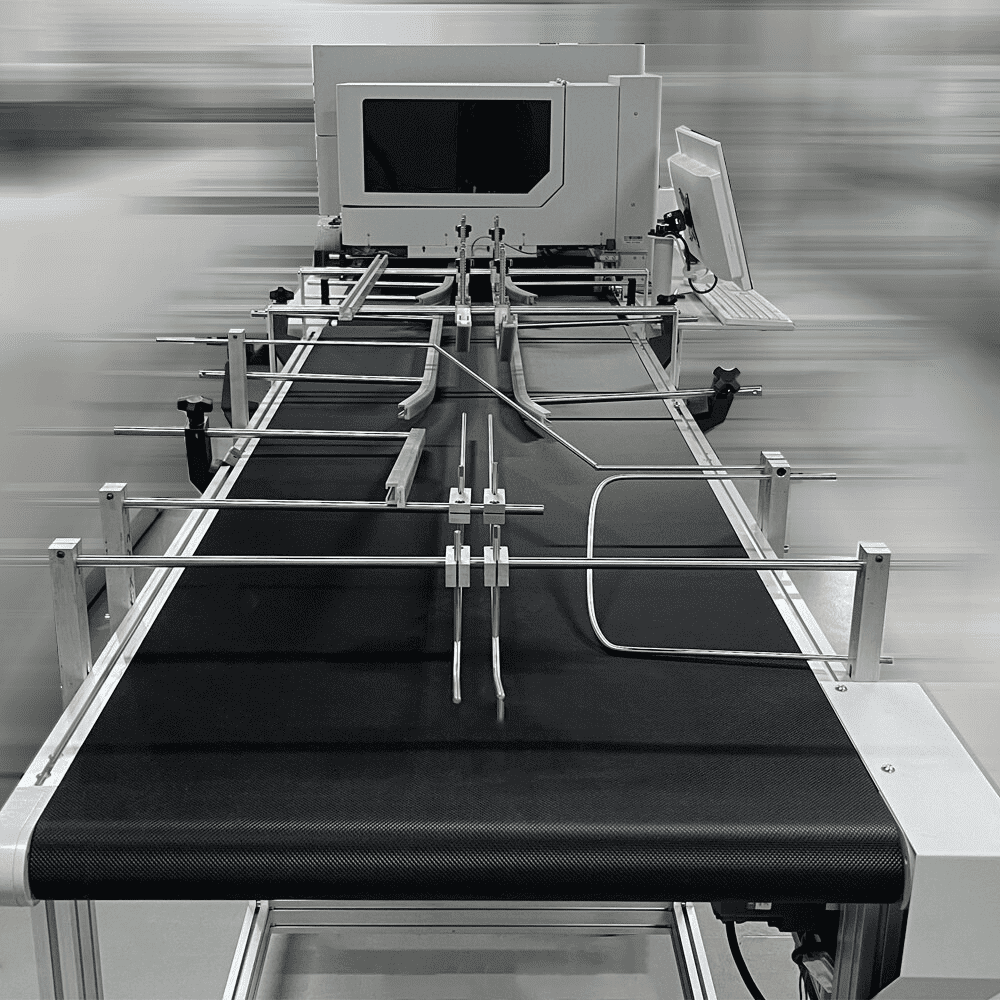

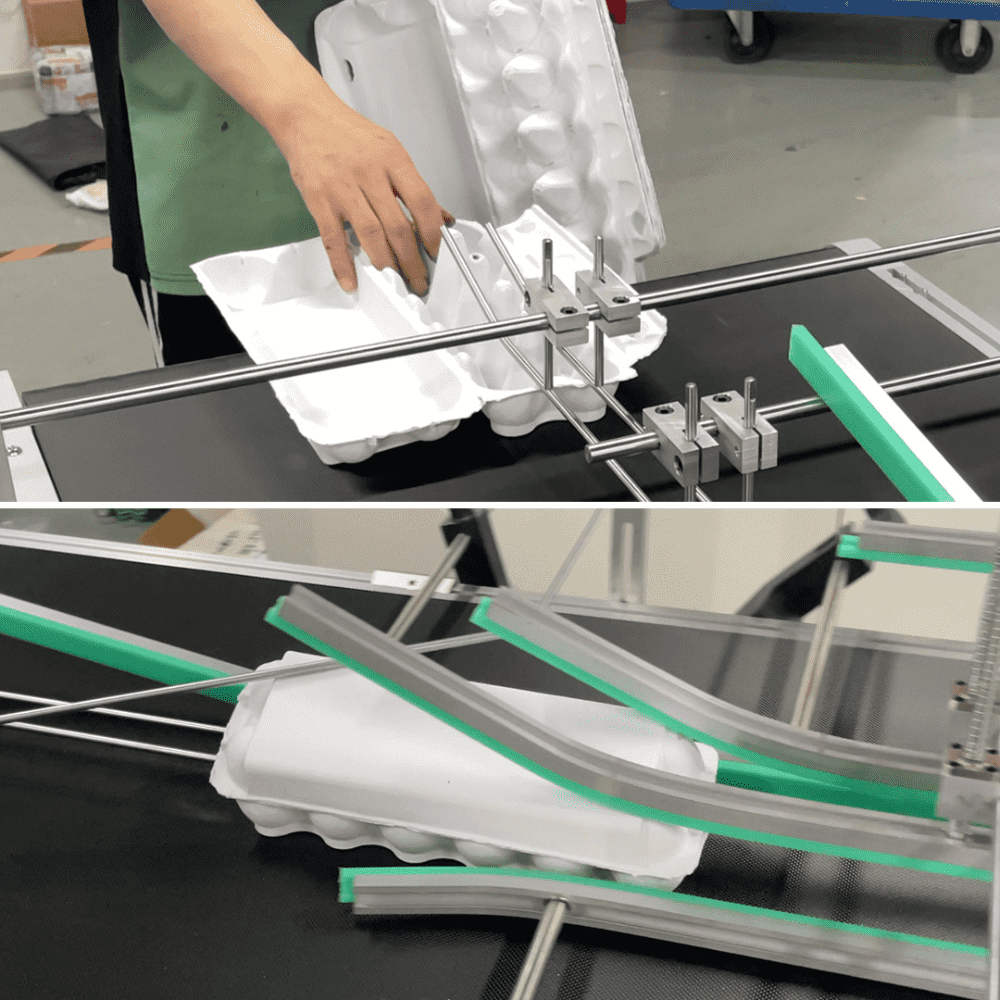

Automatic feeder specially designed for egg cartons, suitable for all sizes of egg cartons, no need to fold the boxes manually.
High precision infrared sensor, accurate identidication of various materials through.

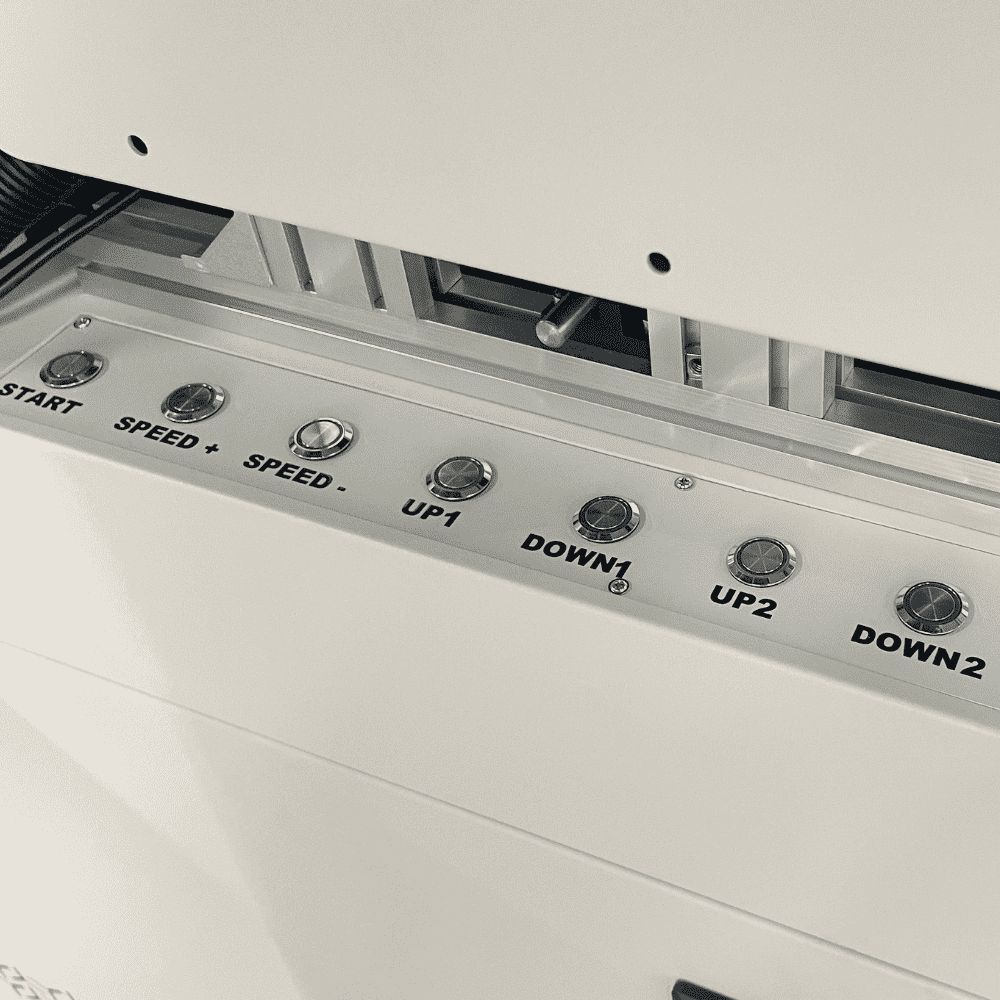

One-button START control sync speed printing for Speed UP and DOWN, amazingly user-friendly to control the whole machine

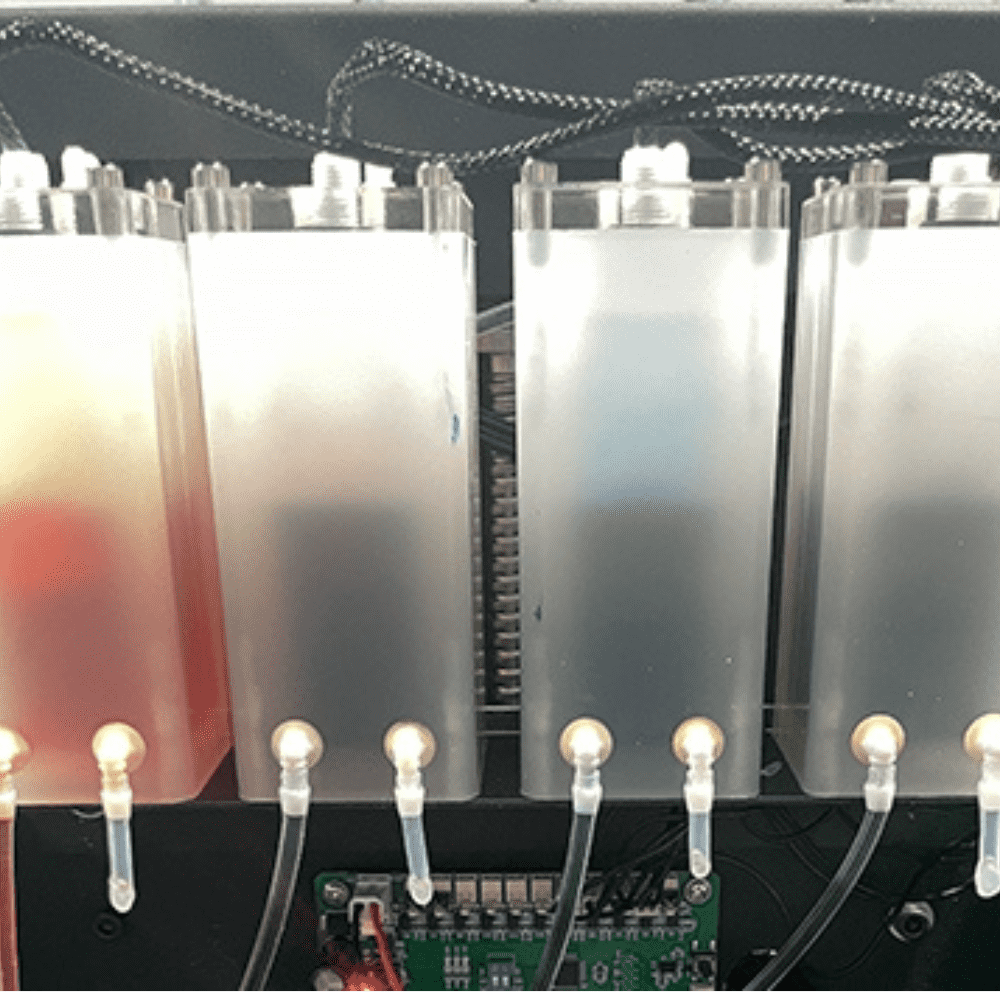

Sub-inktank CiSS ink supply system, more stable and less easy to cause bubble in the printheads.
For better ink fluency and stable printing.

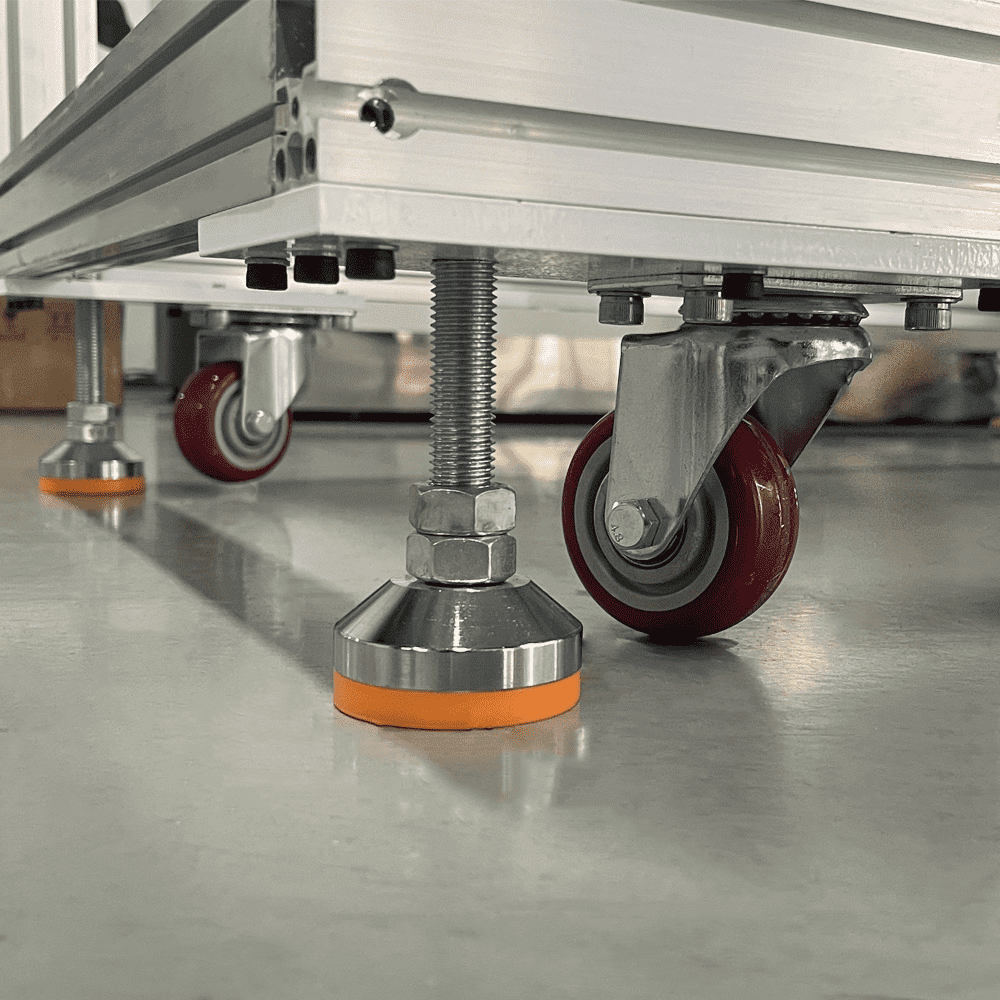

ne person can easily adjust the printer position.
