ZH Special for Edge Printing Digital Printer
Book side or box edge CMYK full colors printing
Book side or box edge CMYK full colors printing
Designed specifically for book edge printing.
Utilizing revolutionary Single Pass technology, it eliminates the need for plate making, enabling high-speed, high-precision full-color printing on book margins in a single scan.
* Printing cost as low as 0.09~0.15$/ sqm
* HP widepage industrial printheads/Industrial piezoelectric printhead optional, support different printing width.
* Whether it’s complex patterns or gradient colors, everything is ready instantly, making it perfect for personalized customization and batch production.
* Save labour cost, automatic belt conveyor, continous high-speed printing
* Light-weight smaller industrial design, easy to move and operate, save space.
* More flexible, size customization available, without complicated platemarking process.
* Fast drying water-bsaed environmentally friendly ink, ink dries immediately after printing, pattern is waterproof and anti-fouling after printing.

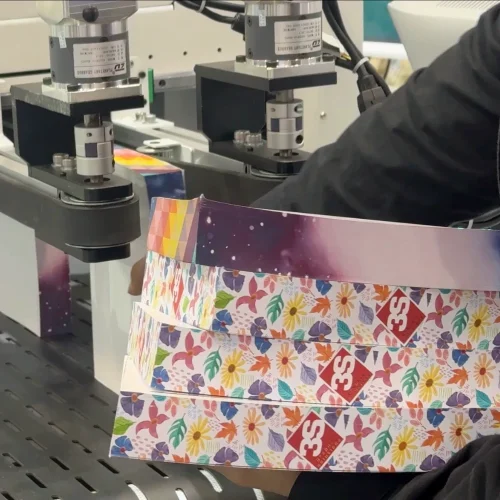

Novix unlocks a reliable solution for edge printing products: not only books, but also packaging boxes and other products can have their side/edge printing done flawlessly, achieving full-color CMYK printing instantly!
It can be equipped with either the HP widepage industrial printheads or an industrial-grade piezoelectric printhead for sustained stability and extremely high printing accuracy. This powerful core component ensures consistently high-quality print output.
Printing any image, photograph, or gradient effect. Transform edges into vibrant works of art, delivering unparalleled visual impact.
The water-based ink used combines environmental friendliness with high performance. It dries instantly and produces long-lasting, vibrant colors. The environmentally friendly formula is odorless, ensuring a safe working environment and simplifying equipment maintenance.
Every user’s product size, height, and printing needs are different. Novix has a professional technical team and engineers who can tailor a complete, intelligent, and automated printing solution to your specific needs.
Contact the Novix team now!
Dedicated research and development and excellent manufacturing quality give you a unique and reliable digital printer, empowering your brand/products.

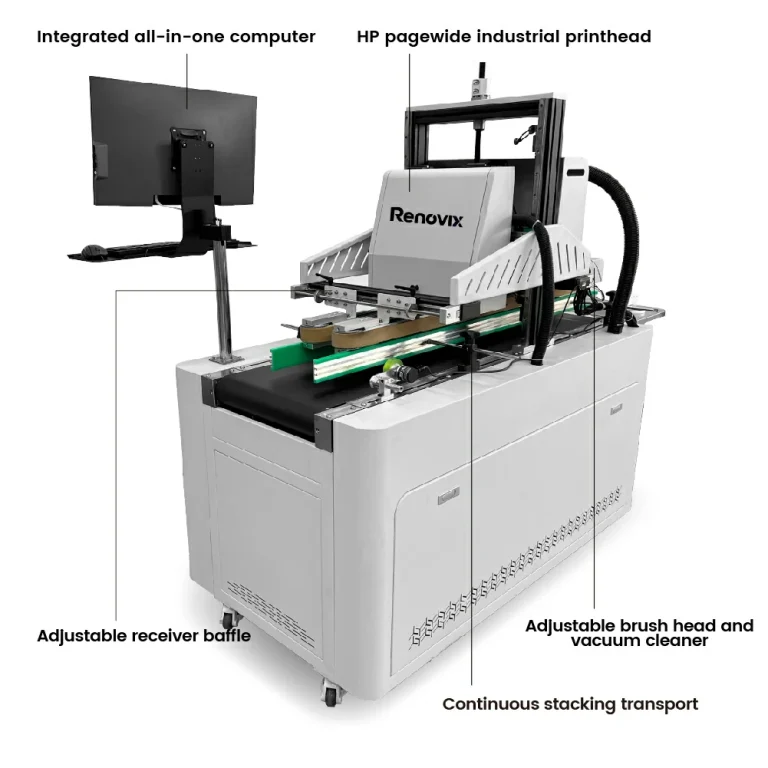

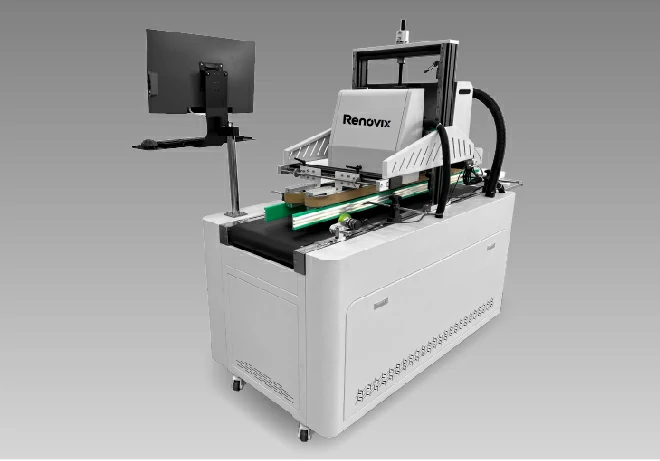

This large-format, high-performance computer-integrated printer comes pre-installed and tested with software, and the Novix team can remotely access the computer for assistance.

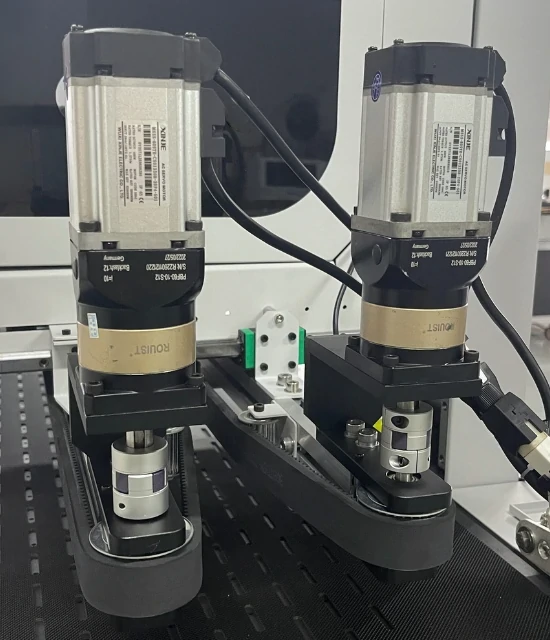

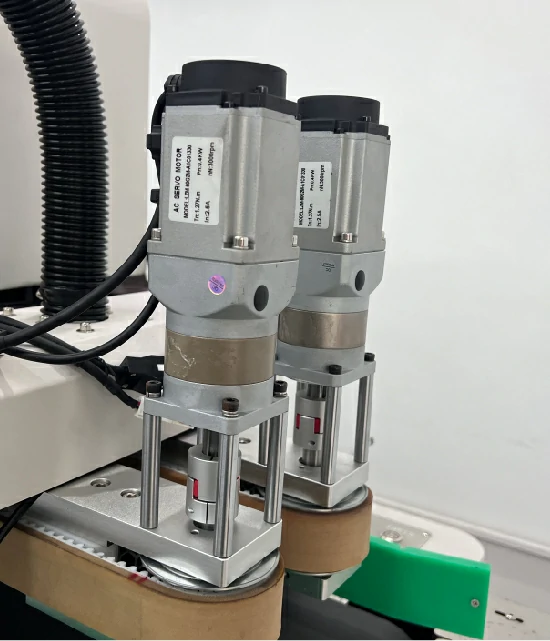

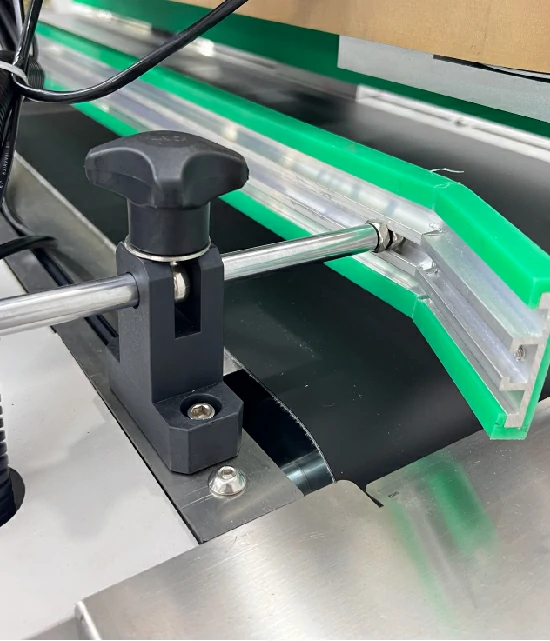

Automatic book feed jig, suitable for different width products. more stable transmission process.

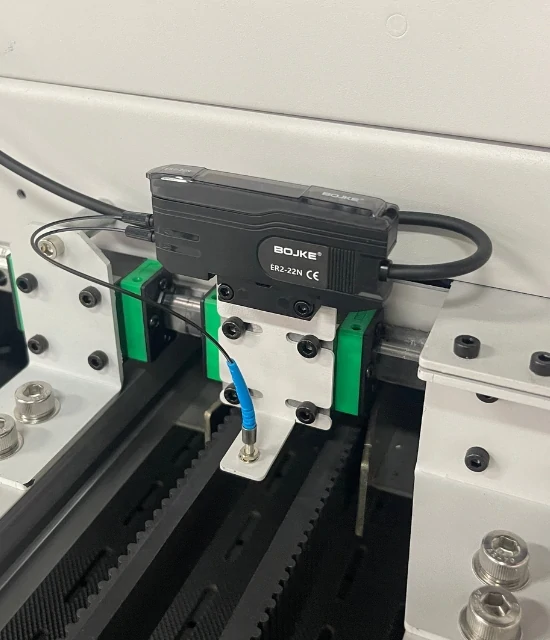

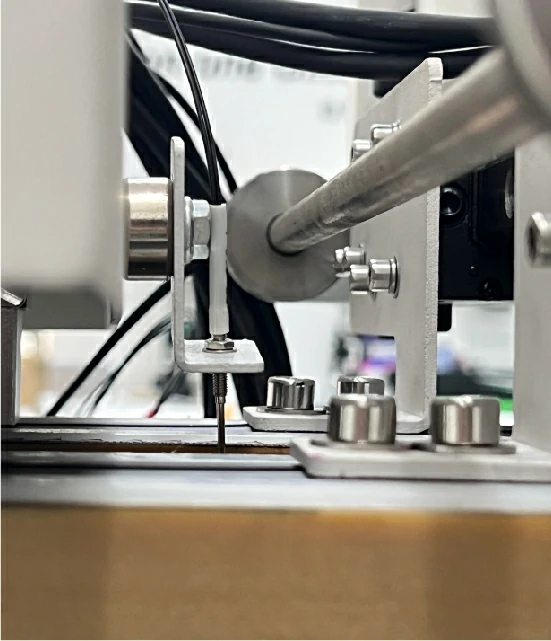

High-precision infrared sensors enable accurate product identification and precise printing.

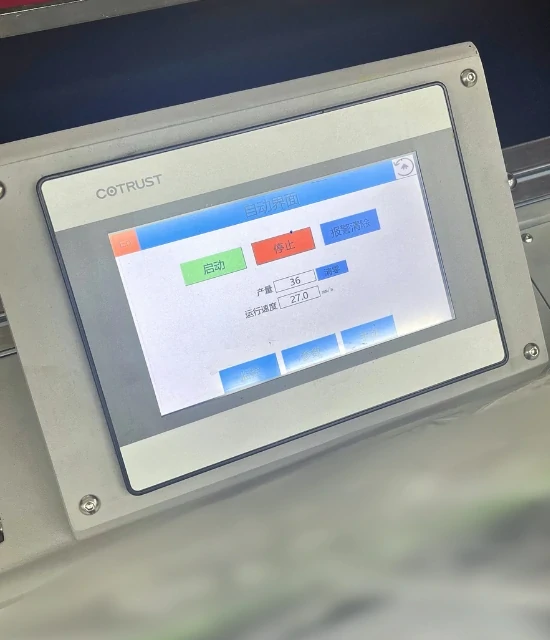

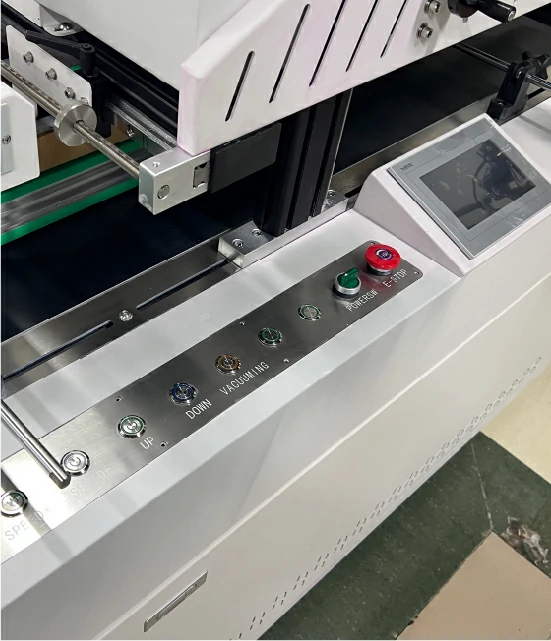

The PLC touchscreen control panel allows for sensitive printer control and easy one-button start-up.

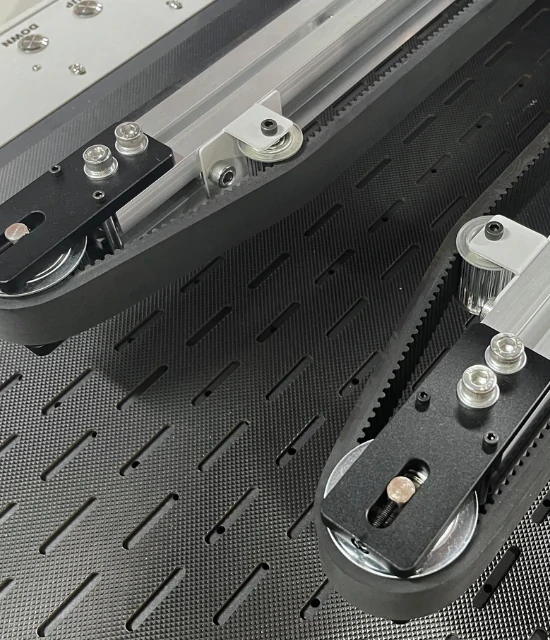

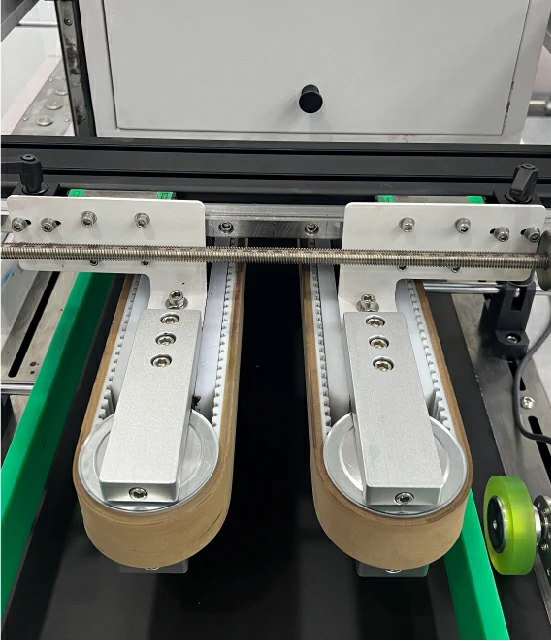

Crawler conveying method
Support bidirectional conveying of materials.
CISS ink supply system, more stable and less easy to cause bubble in the printheads.
For better ink fluency and stable printing.
Good products are revealed in the details.
| Print head | HP widepage industrial printheads / Industrial piezoelectric printhead |
| Technology | Advanced thermal foaming bubble-inkjet technology/ MEMS |
| Printhead Protection Technology | Auto carriage anti-scratch kit |
| Print width | 33mm ~99mm (customizable) | |
| Printing height | 10mm ~ 300mm | |
| Maximum material width | Book thickness 0～150mm | |
| Maximum material height | 10-200mm | |
| Print Speed | 0-40m/mins | |
| Resolution | 1200*300/ 1200*600/ 1200*1200dpi | |
| X axis positioning method | Software adjustment | |
| Z axis positioning method | Software adjustment | |
| Ink type | Environmentally friendly odorless pigment ink |
| Color Configuration | CMYK |
| Ink supply | Multi-layer filter/secondary ink cartridge thermostat/ negative pressure ink supply |
| Ink tank | 1500ML/color |
| Temperature | 15℃~ 30℃ (59ºF～86ºF), Humidity 30%-70% |
| Voltage | 220V/AC(±10%), 50/60Hz, 1KW(Max.) |
| Acoustic noise level | 70db(A) or less |

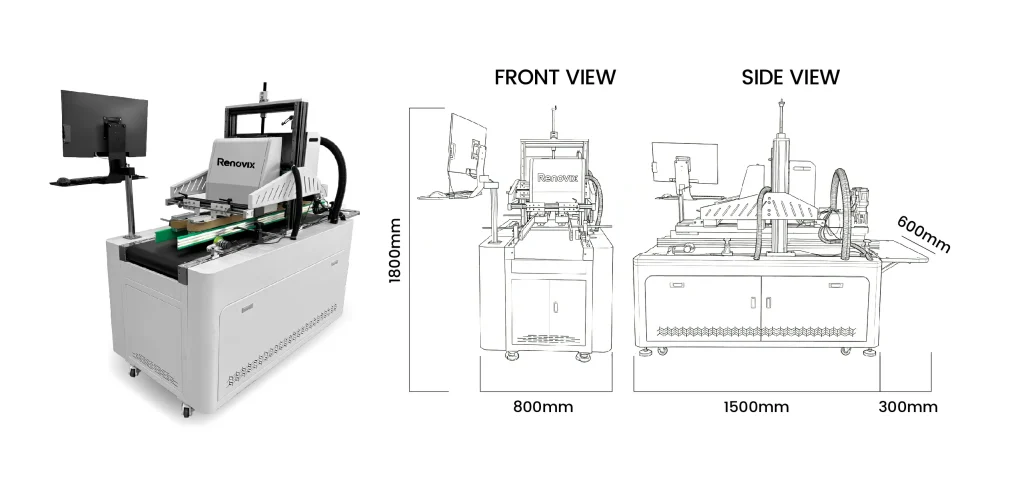

| Printer size(L*W*H) | 2336*850*1905mm |
| Package size(L*W*H) | 2500*1000*1950mm |
| Net Weight of printer | 230KG |
| Gross weight | 300KG |
| Package type | Inside foam protection, outside Ply-wood steel frame package |
| Operating system | Windows® 7/10 (64 bit) Recommend |
| CPU | Intel® Core™ i5, 2.5 GHz or more |
| HDD | Install space 1 GB or more; Working space 100 GB |
| Processor prefered | INTEL AMD |
| Storage | RAM>8G |
| Data Interface | Gigabit Ethernet port |
Our Single Pass Book Edge Printer revolutionizes book decoration by applying high-resolution, full-color artwork directly to book edges in a single, rapid pass. It eliminates traditional, labor-intensive processes, offering unparalleled efficiency and creative freedom for publishers, printers, and binders.
Absolutely. High-precision printing systems (up to 1200 DPI) can accurately reproduce fine text and complex patterns, making them ideal for adding marketing elements or personalized messages.
It’s virtually instant. There are no physical plates or tools to change. Job switching is done simply by adjusting parameters in the software, allowing for immediate switching between different book sizes and designs
No pretreatment required. Equipped with an automatic cleaning system and using quick-drying, environmentally friendly water-based inks, the design dries immediately after printing, achieving waterproof and stain-resistant effects without any additional post-processing steps.
Routine maintenance is very simple, mainly including printhead cleaning and occasional ink refills, significantly reducing maintenance time and technical difficulty.
We offer comprehensive support including a standard warranty, remote online diagnostics, and optional on-site service. Our global support network ensures prompt assistance and minimal downtime for your business.
