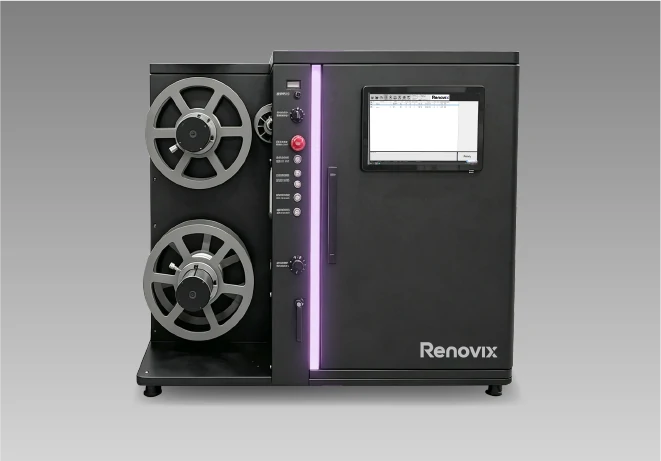

ZH Surge-DL54 Desktop Roll-to-Roll Label Printer – Single Pass Digital Label Press
Industrial-grade, high-speed label printing for short-run and on-demand production – no plates, no minimum order quantity.
Quick location!
The Renovix Surge-DL54 is a desktop roll-to-roll single pass label printer designed for high-quality, on-demand label and sticker production. Featuring an industrial piezoelectric printhead with 600dpi resolution, UV LED instant curing, and CMYK+W color support, it delivers professional-grade output on paper, film, PET, PP, BOPP, and more. With a 10,000-meter print capacity per ink cartridge and variable data support, the NV-U8054 is the ideal solution for businesses seeking a compact, cost-effective, and versatile label printing solution.
More auto | Powerful | Intelligent
▶ Speed & Performance
1.High-speed desktop single pass printing – 30m/min standard speed for efficient label production.
2.Direct CMYK+White printing on various label materials – BOPP, PET, vinyl, paper, and films.
3.UV LED instant curing – energy-efficient cold-curing with immediate rewinding capability.
4.Industrial piezoelectric printhead – 600dpi for sharp text, barcodes, and vibrant graphics.
▶ Precision & Automation
1.Circulating ink supply system – prevents clogging, ensures stable ink flow, extends printhead life.
2.Registration tracking system – ensures accurate print positioning and prevents misalignment.
3.Variable data printing support – QR codes, barcodes, serial numbers, and more.
4.User-friendly computer control – intuitive software with pre-installed setup for easy operation.
▶ Flexibility & Customization
1.No plate, no engraving, zero MOQ – eliminate setup costs, print on demand.
2.Wide material compatibility – paper, film, plastic, metal, wood, and more.
3.Compact desktop design – space-saving footprint perfect for small workshops and production lines.

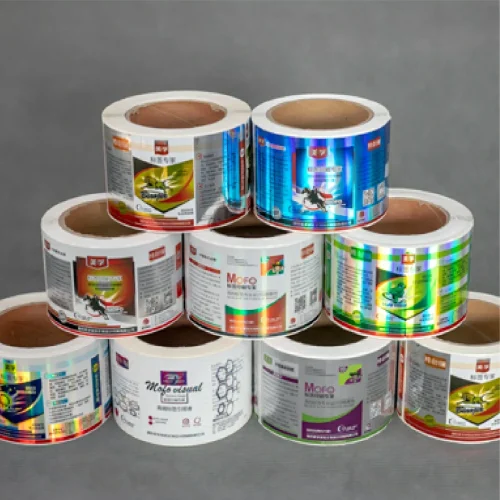

Application

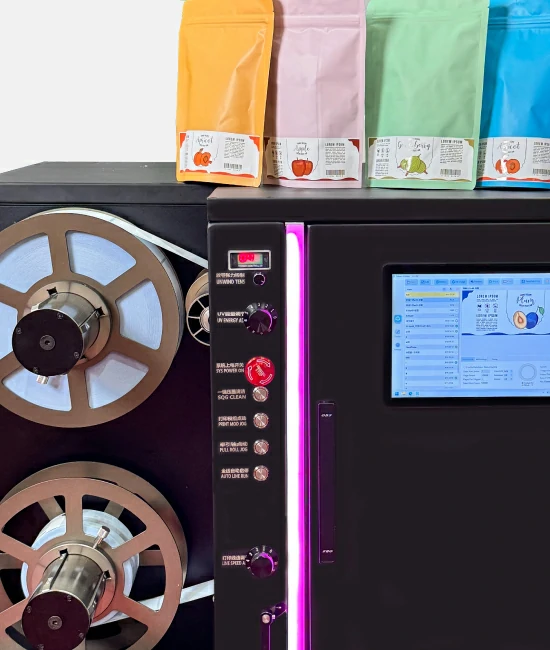

From flexible films to creative packaging – one machine, limitless possibilities.Print on BOPP, PET, PP, vinyl, paper, laminates, shrink sleeves, and more – with support for variable data, QR codes, barcodes, and serial numbers.
Why Choose Surge-DL54?
A Smarter Alternative to Traditional Label Printers
Surge-DL54 (Single Pass Roll Label Printer)
Product
Traditional Desktop Label Printer
Single Pass – completes printing in one pass.
Printing Technology
Scanning – printhead moves back and forth multiple times.

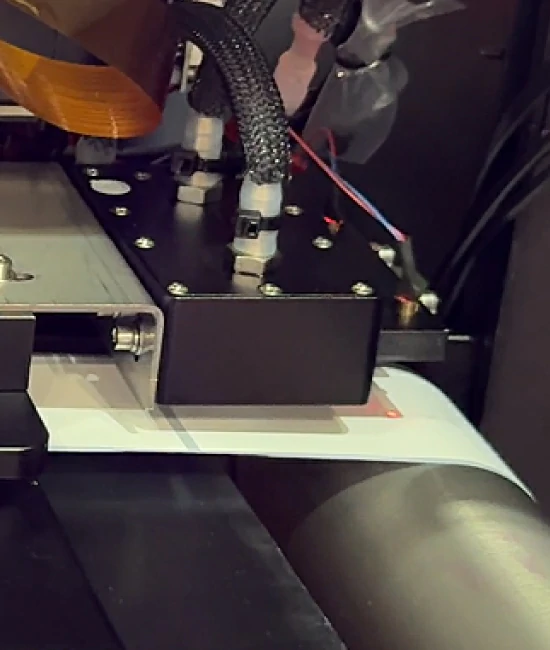

600dpi industrial piezoelectric printhead – sharp text, barcodes, and vivid graphics.
Print Resolution
Usually 300–600dpi consumer-grade printhead – lower precision and durability.
CMYK + White (optional) – supports full-color and white ink printing.
Color Configuration
CMYK only – limited color options, no white ink support.
Native support – QR codes, barcodes, serial numbers, drug codes, and more.
Variable Data Printing
Mostly paper and basic label materials only.
Wide range – paper, film, PET, PP, BOPP, vinyl, metal foil, wood, and more.
Registration tracking system – ensures precise print positioning, no misalignment.
Material Compatibility
Registration Accuracy
High chemical usage. Solvent-based cleaning and wastewater discharge.
Prone to alignment drift – especially on longer runs.
In the field of industrial-grade single-pass digital printing, the printhead is not only a core component but also the soul that determines production efficiency and output quality.
We perfectly combine high-performance industrial printheads with our UV single-pass printers to bring you the ultimate printing experience.
- 54–328mm customizable print widths – adapts to various roll sizes and applications
Resolution up to 1200 dpi – razor-sharp details and vivid color reproduction
Industrial-grade durability – built for continuous high-volume production
While achieving high-speed roll-to-roll single pass printing, the Surge-R2R Press ensures exceptional color performance. The combination of a high-precision inkjet system and advanced color management software enables accurate, vibrant full-color images with smooth gradients to be precisely printed on BOPP, PET, PP, vinyl, paper, and various flexible films – all in a single pass.
Whether it’s complex gradient patterns, delicate brand logos, or high-coverage packaging designs, the Surge-R2R Press delivers exceptional fidelity and stunning visual impact – empowering your brand with professional-grade flexible packaging and label printing.
Our UV LED curable ink features a low-VOC, eco-friendly formulation that significantly reduces environmental impact while meeting increasingly stringent international safety standards. Green, safe, and harmless – protecting your health and the environment.
With UV LED instant curing technology, ink dries immediately upon contact – no drying time, no waiting. This enables instant rewinding and downstream processing, dramatically improving production efficiency. The cured ink delivers excellent adhesion, scratch resistance, and weatherability on a wide range of flexible substrates.
Every user’s product size, height, and printing needs are different. Renovix has a professional technical team and engineers who can tailor a complete, intelligent, and automated printing solution to your specific needs.
Contact the Renovix team now!

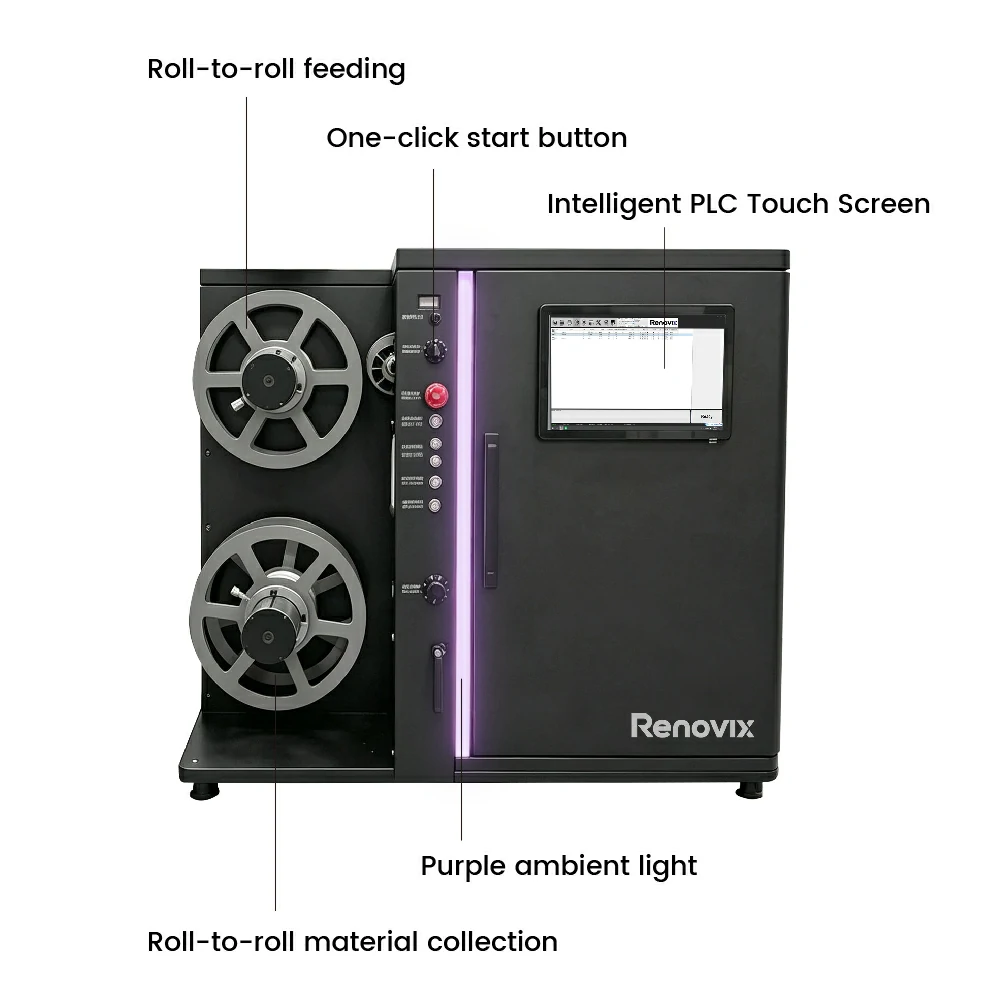

Product Details
Dedicated research and development and excellent manufacturing quality give you a unique and reliable digital printer, empowering your brand/products.

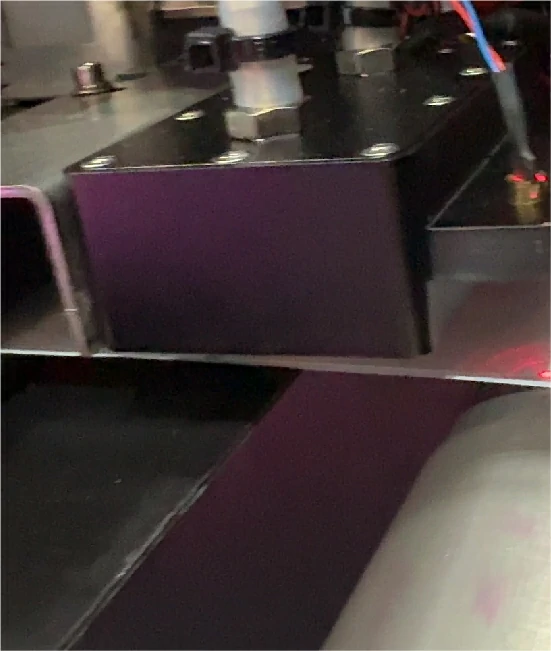

UV LED Instant Curing System
Energy-efficient cold-curing technology fixes ink immediately upon contact – no drying time, instant rewinding. Protects heat-sensitive materials while reducing energy consumption.

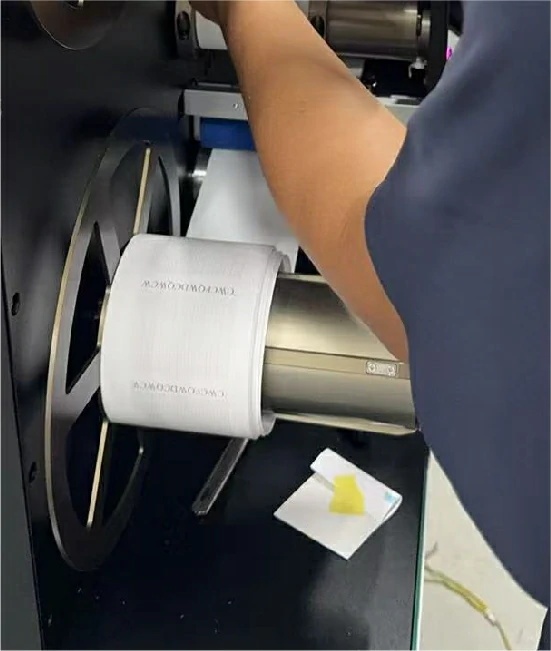

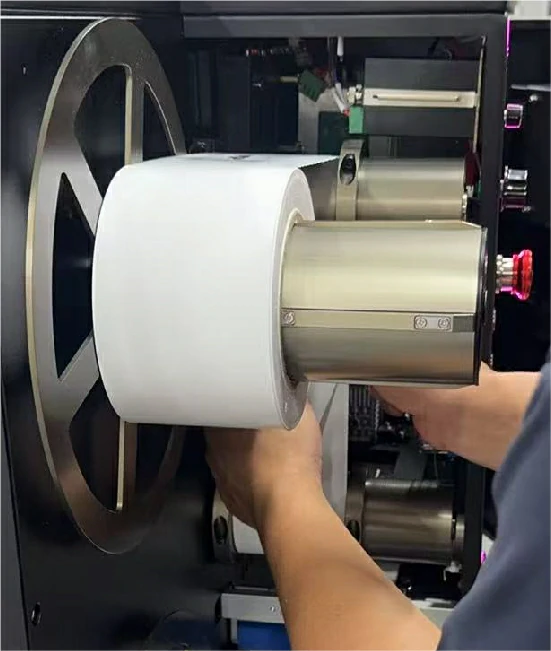

Automated Unwind-Rewind System
Continuous roll feeding with auto-tracking and tension control. Minimizes manual intervention for uninterrupted, non-stop production.

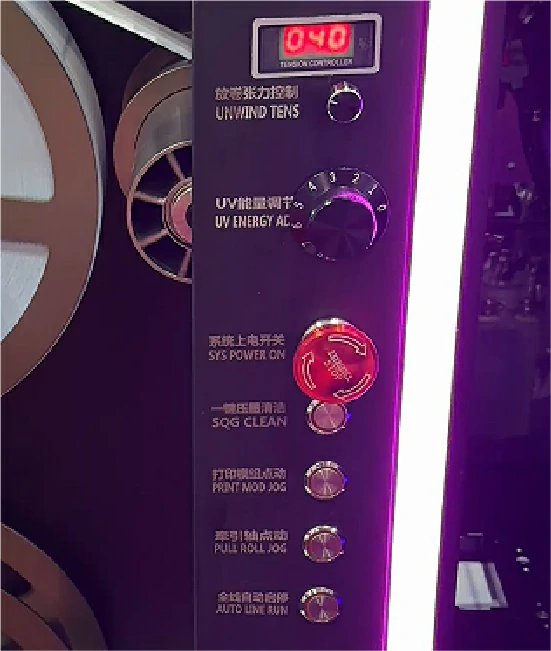

High-Precision Tension Control System
Maintains stable material transport throughout the entire unwind-print-rewind process. Prevents stretching, wrinkles, and misregistration – even on thin films at high speed.

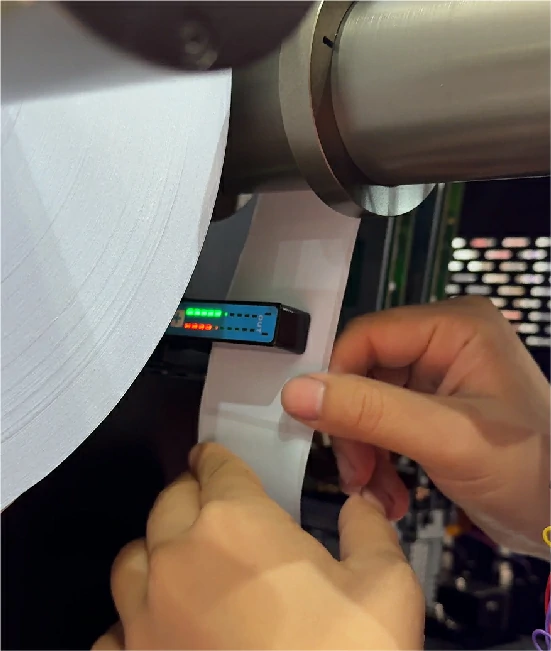

Automatic Calibration & Positioning System
High-precision encoder with infrared sensor enables real-time registration and position correction. Eliminates misalignment and ensures consistent print quality across the entire roll.

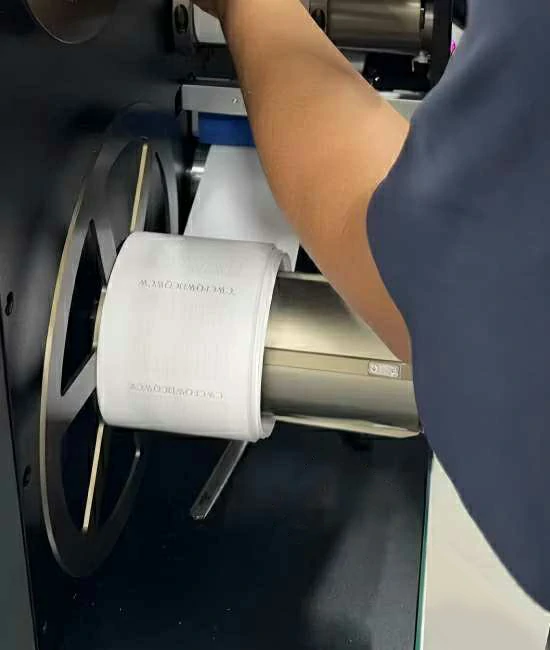

Adjustable Receiving System
Automatically collects and rewinds finished rolls with precision tension adjustment. Ensures consistent, ready-to-use rolls without manual handling.

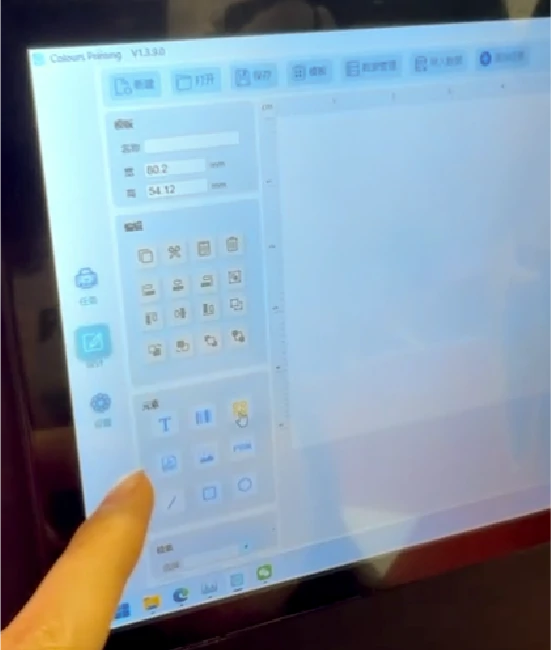

Variable Data Printing Support
On-the-fly printing of QR codes, barcodes, serial numbers, drug regulatory codes, and personalized text. Perfect for traceability, anti-counterfeiting, and customized packaging applications.
Technical Specifications
Good products are revealed in the details.
| Print head | Industrial micro piezo printhead |
| Technology | MEMS/ POD technology |
| Ink recirculation | Ink recirculation through all channels |
| Printhead life | Piezoelectric Drive durability, more than 106 billion inkjet times |
| Greyscale | Greyscale levels printing |
| Nozzles Resolution | 600dpi; |
| Number of nozzles | 4-30pcs as print area demand |
| Temperature control | Build-in temperature sensor |
| Jetting frequency | 12kHz / 3drops |
| Printhead Protection Technology | Auto carriage/printhead anti-scratch kit |
Material thickness | 0.05-0.2mm |
| Printing width(mm) | 54mm |
| Material load width(mm) | Max: 80mm |
Material unwinder & rewinder | Inner Diameter: 3 inches (approx. 76 mm) Outer Diameter: Max: 225 mm (customizable for larger diameters) |
| Print Speed | Standard Mode: 30 m/min |
Inkjet printing function | Patterns/QR codes/barcodes/drug regulatory codes/characters/etc |
Material pretreatment | Integrated Plamas/ corona/ dust removal system optional |
Material tenssion system | Intelligent constant tenssion control system |
Material deviation correction system | Intelligent real-time auto deviation control system |
| Control syetem | Renovix Roll Lable Single Pass Control software, pre-installed in integrated computer on machine |
| RIP Software | RIIN software with color management (With ink consumption/ cost auto calculation) |
Input format | PDF, TIF, BMP, PRN, PRT Etc |
| Remote control software | Pre-installed in integrated computer on machine |
| Other option | Software interface secondary development available |
| Variable data editing software available | |
| I/O Interface, robot controlling conection support |
| Ink type | UV ink (Environmentally-friendly) |
| Color Configuration | CMYK (standard), W + CMYK coating & varnish optional |
| Ink supply | Continual ink supply system (CISS); Intelligent constant sub-ink tank pressure |
| Ink filter | Ink filtration system available to filtering oversized particles |
| Ink tank | 260ML/color |
| Protection system | Automatic ink shortage alarm system, support ink refilled during printing |
| Anti clogging of Printhead | Automatic white ink stirring system; nagative pressure ink control |
| Cleaning & Maintenance system | Automatic cleaning ink station, auto flashing and maintanence |
| Temperature | Ambient temperature: 20°C~35°C (50°F~80°F) Relative humidity: 30%~70% (non-condensing) |
| Voltage | 220V/AC(±10%), 50/60Hz, 1.25KW |
| Acoustic noise level | 70db(A) or less |

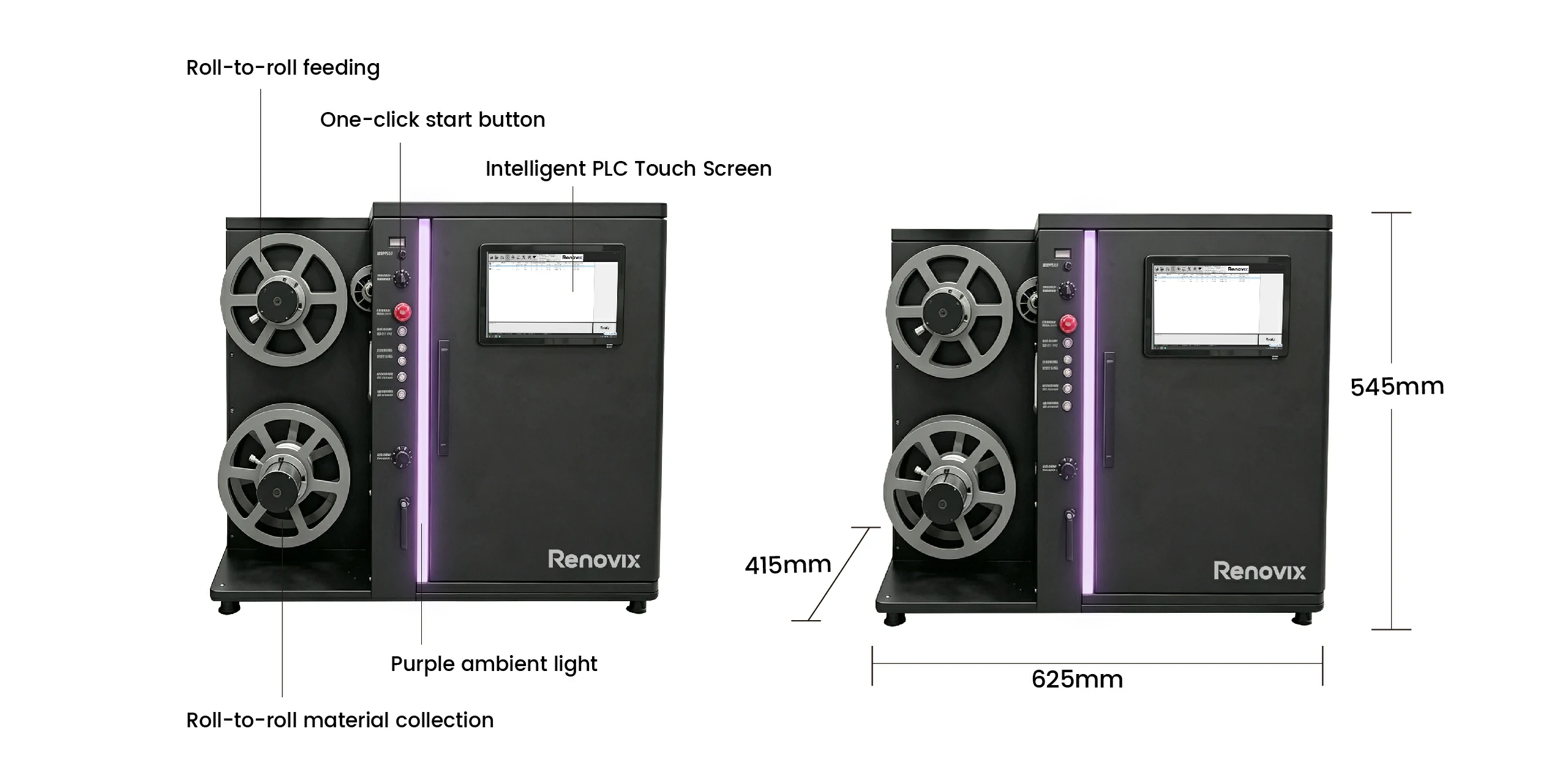

| Printer size(L*W*H) | 625*415*545mm |
| Package size(L*W*H) | 750*600*650mm |
| Net Weight of printer | 45KG |
| Gross weight | 75KG |
| Package type | Inside foam protection, outside Ply-wood steel frame package |
| Operating system | Windows® 10 (64 bit) Recommend |
| CPU | Intel® Core™ i5, 2.5 GHz or more |
| HDD | Install space 1 GB or more; Working space 100 GB |
| Processor prefered | INTEL AMD |
| Storage | RAM>8G |
| Data Interface | Gigabit Ethernet port |
FAQ about Desktop Roll-to-Roll Label Printer
The Renovix Surge-DL54 is a desktop roll-to-roll single pass label printer designed for high-quality, on-demand label and sticker production. Featuring an industrial piezoelectric printhead with 600dpi resolution, UV LED instant curing, and CMYK+W color support, it delivers professional-grade output on paper, film, PET, PP, BOPP, and more. With a 10,000-meter print capacity per ink cartridge and variable data support, the NV-U8054 is the ideal solution for businesses seeking a compact, cost-effective, and versatile label printing solution.
A desktop roll-to-roll label printer is a compact digital printing system that prints on continuous roll-fed label stock in a single pass. It’s ideal for short-run, on-demand label production without plates or minimum order quantities.
The Surge-DL54 supports a wide range of materials including paper, film, PET, PP, BOPP, vinyl, metal foil, and more – with UV ink for excellent adhesion and durability.
Yes. The Surge-DL54 supports CMYK+W (CMYK plus White) for printing on transparent films and dark substrates.
The Surge-DL54 delivers standard printing speeds of 30 m/min, making it ideal for short-run and medium-volume label production.
Not at all. The Surge-DL54 features user-friendly software, pre-installed computer control, and intuitive operation – one person can easily manage the entire production process.
Yes. The Surge-DL54 natively supports variable data printing including QR codes, barcodes, serial numbers, and more – perfect for traceability and anti-counterfeiting applications.
